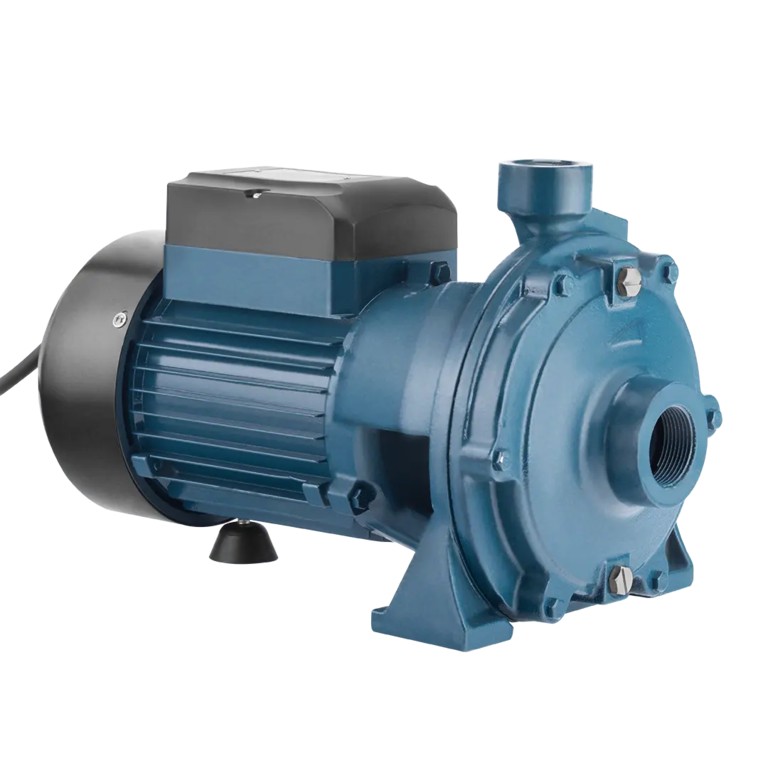

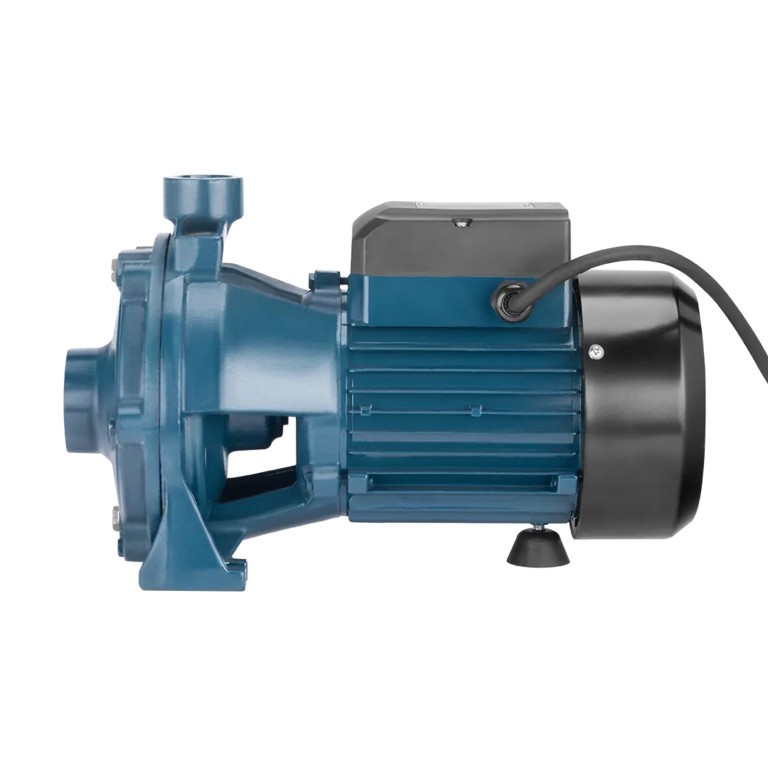

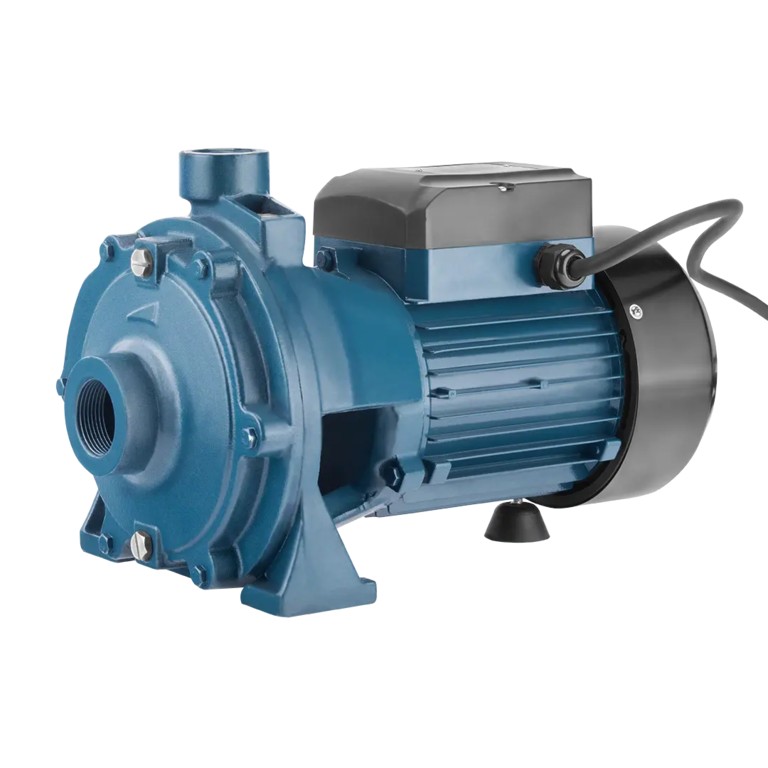

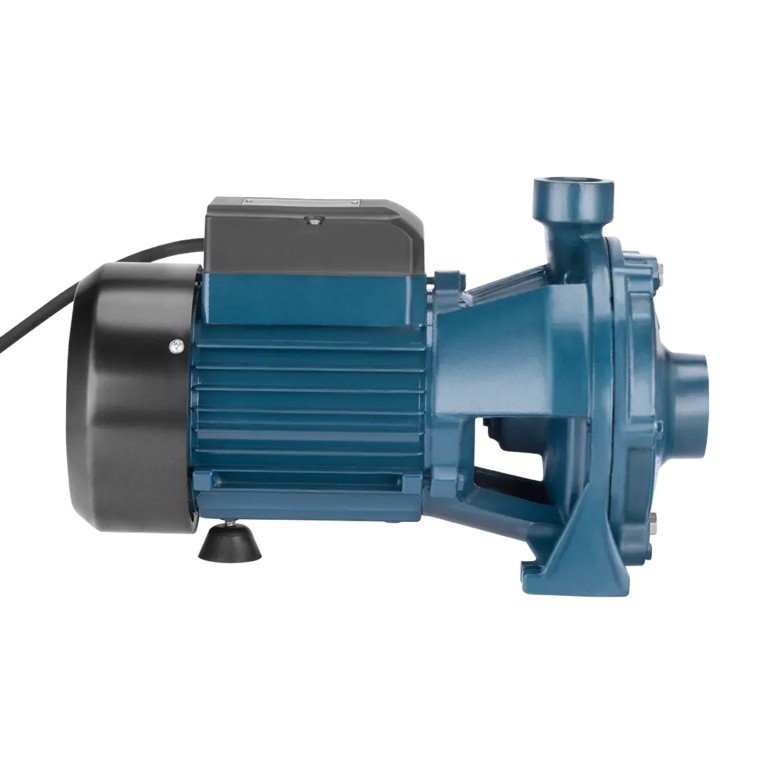

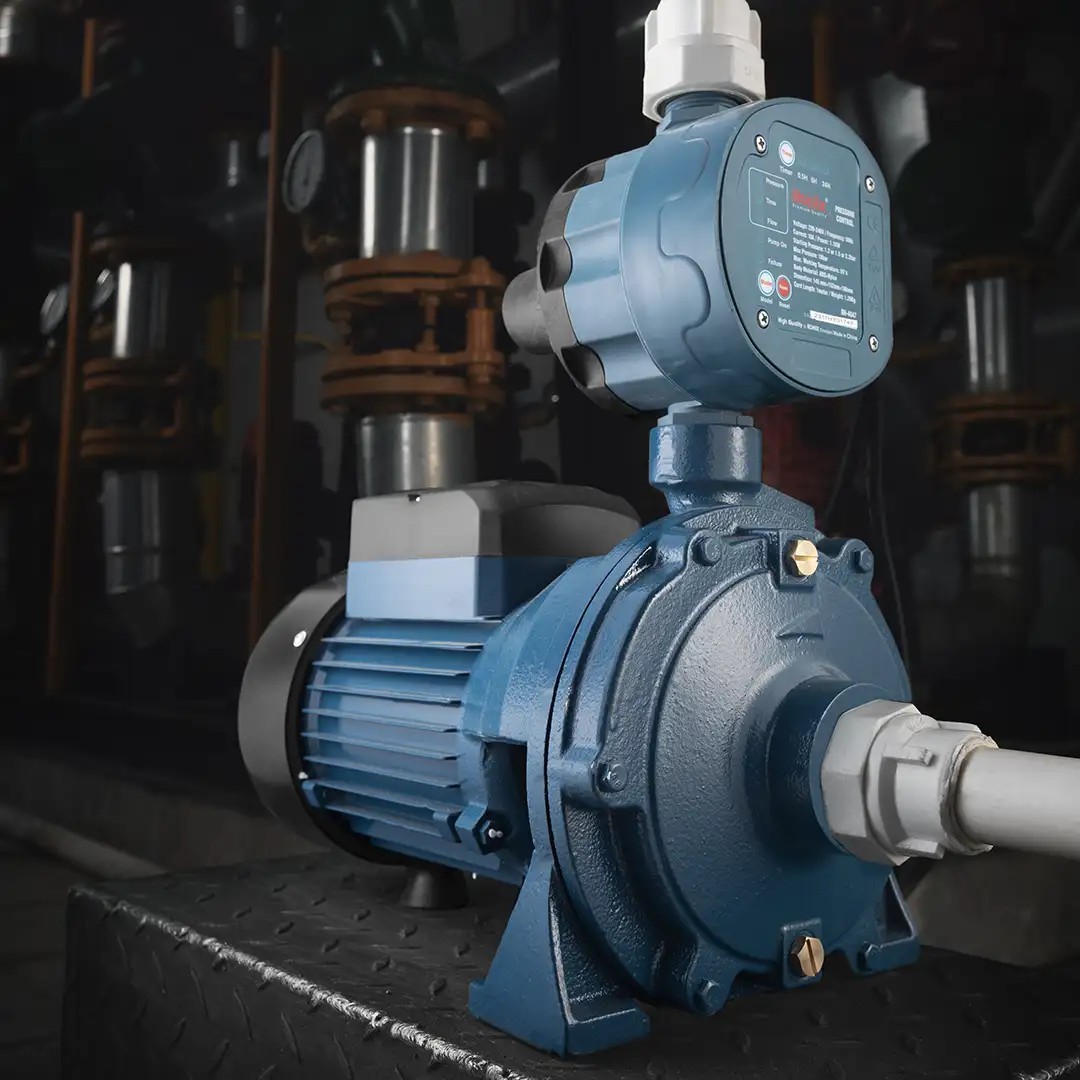

The Ronix RH-4024 is a compact 1.5HP high-head water pump designed for clean-water applications where reliable flow and strong head performance are required. With a maximum flow of 9.3 m³/h, maximum head of 45 m, and suction capability up to 8 m, it is suitable for domestic water supply, garden irrigation, allotments, and small industrial water systems.
The RH-4024 combines a cast iron pump housing, brass impeller, 316+45 shaft, and Ceramic/Graphite mechanical seal for a solid construction suited to regular operation. Its copper-wound motor features thermal protection and Class B insulation, helping protect the motor during continuous everyday use.
For water pump distributors, importers, wholesalers, and OEM buyers, the RH-4024 provides a practical 1.5HP configuration with a strong flow rate and compact pump design for a wide range of clean-water applications.
The RH-4024 is designed to deliver strong pumping performance without requiring an oversized installation footprint. Its maximum head of 45 m makes it suitable for applications that require reliable water delivery across moderate vertical distances.
Powered by a 1.5HP motor, the RH-4024 delivers a maximum flow rate of 9.3 m³/h. This higher flow capacity makes the pump suitable for applications where moving larger quantities of clean water is more important than achieving extremely high pressure.
The pump can provide suction up to 8 m, making it suitable for systems where the water source is positioned below the pump. Correct pipe sizing and installation are important to achieve the specified suction performance.

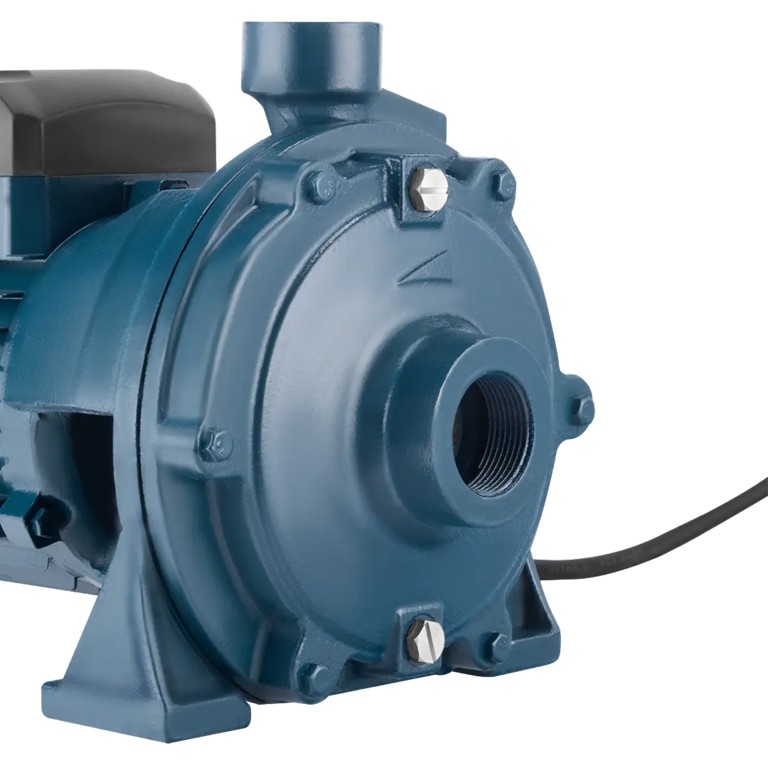

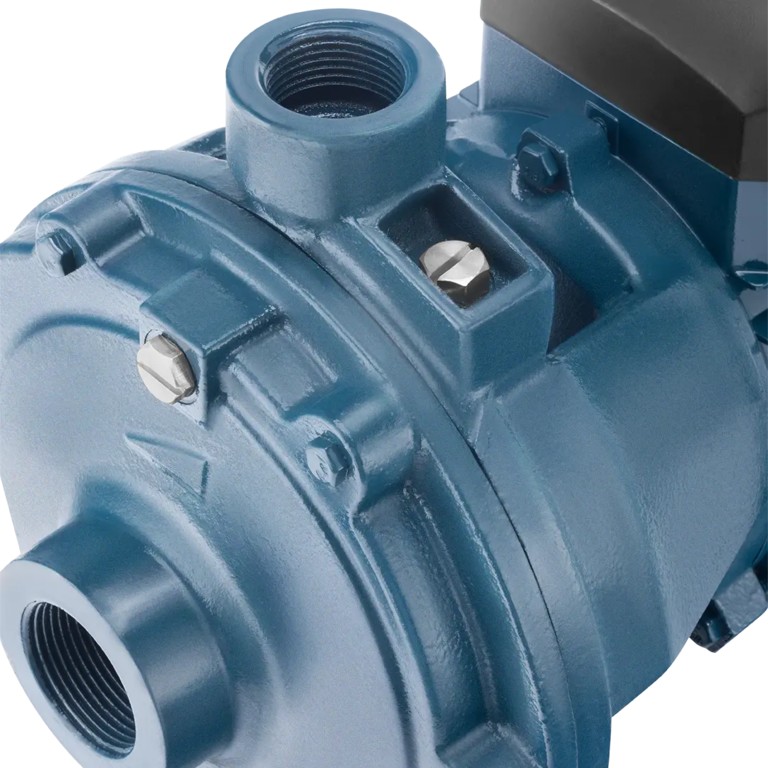

The cast iron pump housing provides a robust structure for regular water pumping. Combined with the brass impeller and 316+45 shaft, the construction is designed for dependable service in domestic and light commercial environments.
The brass impeller supports efficient water movement and provides a durable internal component for clean-water pumping applications.
The RH-4024 uses a Ceramic/Graphite mechanical seal to help maintain effective shaft sealing during operation. This helps reduce the possibility of water leakage around the rotating shaft under normal working conditions.

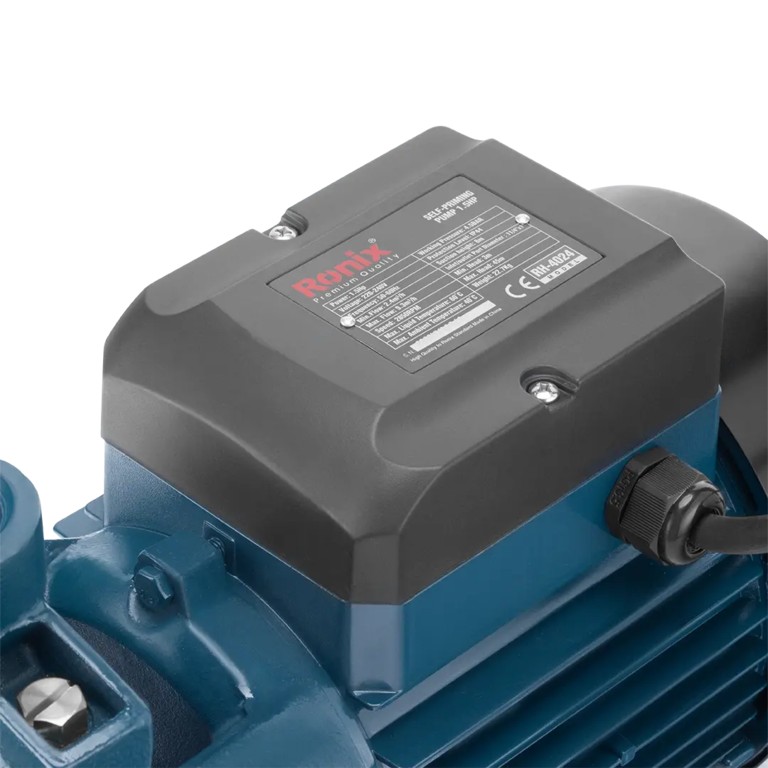

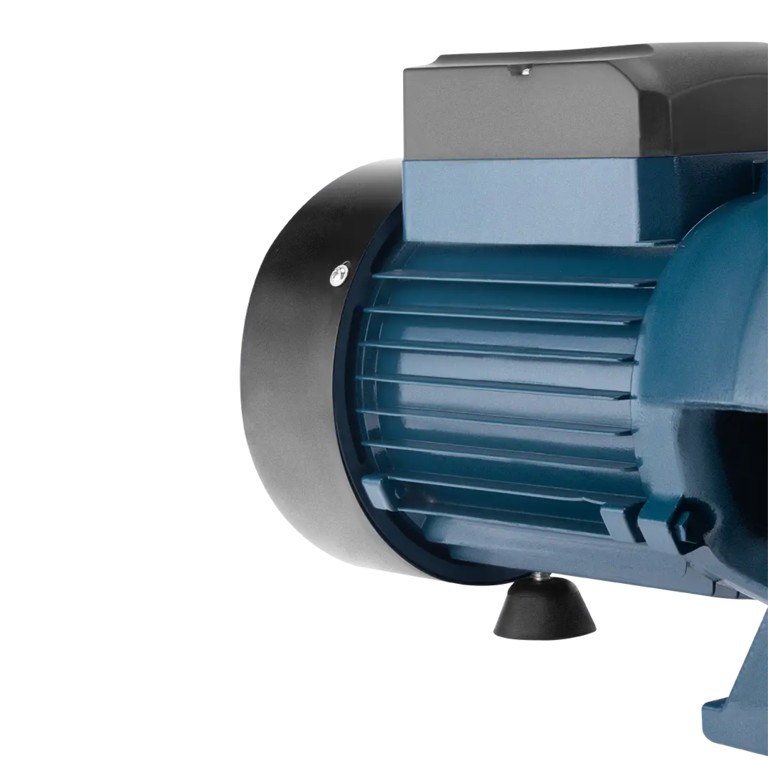

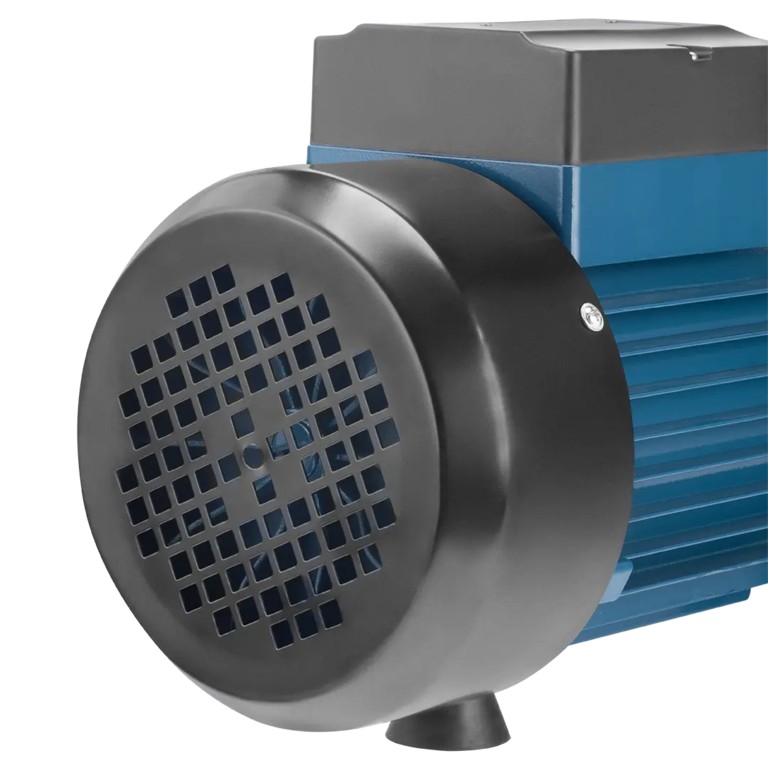

The motor is equipped with thermal protection to help protect against excessive heat during operation. Class B insulation and copper coil winding further support stable motor performance and service life.
Specification | RH-4024 |
Product Type | High-Head Water Pump |
Model | RH-4024 |
Power | 1.5 HP |
Voltage | 220–240 V |
Frequency | 50–60 Hz |
Speed | 2850 RPM |
Min. Flow | 2.4 m³/h |
Max. Flow | 9.3 m³/h |
Min. Head | 3 m |
Max. Head | 45 m |
Working Pressure | 4.5 bar |
Suction Height | Up to 8 m |
Inlet / Outlet Port | 1¼" × 1" |
Max. Liquid Temperature | 60°C |
Max. Ambient Temperature | 40°C |
Pump Housing | Cast Iron |
Motor Housing | Aluminum |
Impeller | Brass |
Shaft | 316 + 45 |
Mechanical Seal | Ceramic / Graphite |
Coil Winding | Copper |
Motor Protection | Thermal Protector |
Insulation Class | Class B |
Protection Level | IP44 |
Weight | 22.7 kg |
Packaging | Honeycomb Carton |
The RH-4024 is designed for clean water and chemically neutral liquids that do not contain solids, abrasive particles, aggressive chemicals, excessive viscosity, or crystallized materials.
Typical applications include:
Domestic water supply
Garden irrigation
Allotment irrigation
Small-scale agricultural irrigation
Household water systems
Small industrial water transfer
Garden and landscape maintenance
Clean-water transfer
General water supply systems
Its combination of 1.5HP power, 9.3 m³/h maximum flow, and 45 m maximum head makes it suitable for applications requiring a balance between water volume and pumping height.
For distributors and importers, the RH-4024 offers a useful combination of performance, construction, and application flexibility.
Higher flow capacity: A maximum flow of 9.3 m³/h allows the pump to move a substantial volume of clean water.
1.5HP power: Provides a practical power level for domestic, irrigation, and small industrial water systems.
8 m suction capability: Suitable for installations where the water source is below the pump.
Durable construction: Cast iron housing, brass impeller, and 316+45 shaft provide a solid mechanical structure.
Motor protection: Thermal protection and Class B insulation help improve motor reliability.
Wide application range: Suitable for garden irrigation, domestic water supply, allotments, and small industrial water transfer.
B2B-ready packaging: Supplied in a honeycomb carton, providing practical packaging for bulk transportation and distribution.
The Ronix RH-4024 can be positioned in different markets as a 1.5HP water pump, high-flow water pump, high-head water pump, irrigation pump, domestic water pump, or clean-water pump.
For water pump distributors, importers, wholesalers, and OEM buyers, its 1.5HP motor, 9.3 m³/h maximum flow, 45 m maximum head, 8 m suction height, and durable pump components provide a practical specification for expanding a professional water pump range.
The 220–240 V power configuration is suitable for markets using standard single-phase electrical systems. The combination of a cast iron housing and brass impeller also gives distributors a straightforward product specification for residential and light commercial water pumping markets.
1.5HP water pump for domestic and light industrial applications
9.3 m³/h maximum flow for high-volume water transfer
45 m maximum head
4.5 bar working pressure
8 m maximum suction height
1¼" × 1" inlet/outlet ports
Cast iron pump housing
Brass impeller
316+45 shaft
Ceramic/Graphite mechanical seal
Copper coil winding
Thermal motor protection
Class B insulation
IP44 protection
220–240 V power supply
Honeycomb carton packaging
The RH-4024 is a 1.5HP high-flow water pump designed for clean-water applications including domestic water supply, irrigation, and small industrial water transfer.
The maximum flow rate is 9.3 m³/h, with a specified minimum flow of 2.4 m³/h.
The RH-4024 has a maximum head of 45 m and a minimum specified head of 3 m.
The maximum suction height is 8 m under suitable installation conditions.
The RH-4024 has a maximum working pressure of 4.5 bar.
It is designed for clean water and chemically neutral, non-aggressive liquids that are free from solids, abrasive particles, excessive viscosity, and crystallized materials. The maximum liquid temperature is 60°C.
Yes. With its 1.5HP motor, 9.3 m³/h maximum flow, and 45 m maximum head, the RH-4024 is suitable for many garden, allotment, and small-scale agricultural irrigation systems when properly installed.
The pump housing is made from cast iron, the impeller is brass, the shaft uses 316+45, and the mechanical seal is made from Ceramic/Graphite.
Yes. The motor includes thermal protection, Class B insulation, copper coil winding, and IP44 protection.
The RH-4024 is supplied in a honeycomb carton, making it suitable for bulk handling, transportation, and B2B distribution.
The Ronix RH-4024 combines a 1.5HP motor with high flow capacity, reliable head performance, and durable pump components. With a 9.3 m³/h maximum flow, 45 m maximum head, and 8 m suction height, it is well suited to domestic water supply, garden irrigation, allotments, and small industrial applications.
For B2B distributors, water pump importers, wholesalers, and OEM buyers, the RH-4024 offers a balanced product specification that can fit into a professional clean-water pump portfolio while providing the flow capacity required for higher-volume applications.
