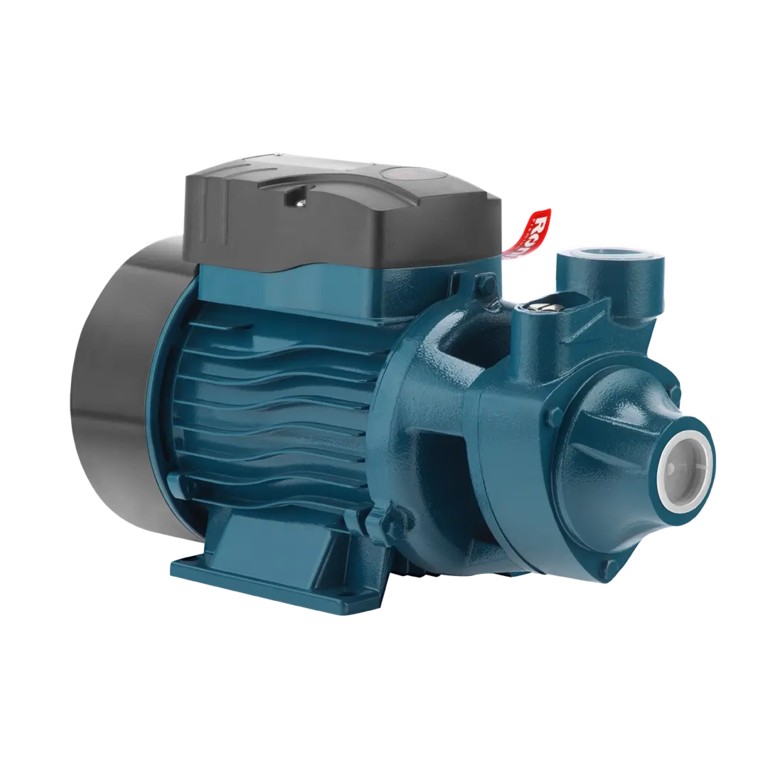

The Ronix RH-4023 is a compact 1HP peripheral water pump developed for applications where high head performance is required without taking up much installation space. With a maximum head of 65 m, working pressure of 6.5 bar, and suction capability up to 8 m, it is a practical choice for domestic water supply, garden irrigation, allotments, and small industrial water systems.
The pump combines a cast iron pump housing, brass impeller, 316+45 shaft, and Ceramic/Graphite mechanical seal to provide a durable construction for regular clean-water pumping. Its copper winding motor is equipped with thermal protection and Class B insulation, helping maintain reliable operation during everyday use.
For water pump distributors, importers, wholesalers, and OEM buyers, the RH-4023 offers a compact product configuration with strong head performance, making it suitable for a range of international water pump markets.
The RH-4023 uses a peripheral pump structure that keeps the overall dimensions compact while delivering a maximum head of 65 m. This makes it suitable for installations where available space is limited but higher water pressure is still required.
The pump provides a maximum suction height of 8 m, allowing it to draw water from a lower-level source when the system is correctly installed. This makes the RH-4023 suitable for various domestic and garden water supply arrangements.
With a maximum working pressure of 6.5 bar, the RH-4023 is designed for applications requiring relatively high water pressure. Its combination of 1HP power and high head makes it a useful option for domestic water systems and irrigation applications.
The brass impeller provides a durable working component for clean-water pumping. Together with the cast iron pump housing, it creates a robust pump structure for regular use.
The RH-4023 uses a Ceramic/Graphite mechanical seal to provide reliable shaft sealing during operation. The seal design helps reduce the risk of water leakage around the rotating shaft under normal working conditions.

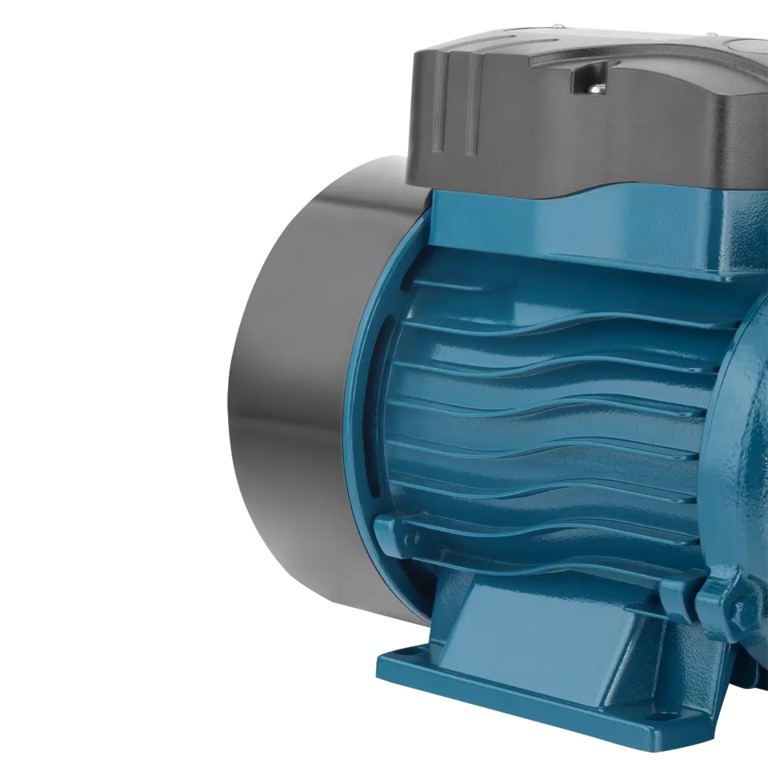

The motor is equipped with thermal protection to help prevent damage caused by excessive temperature during operation. Combined with Class B insulation and copper coil winding, this supports reliable motor performance and longer service life.
Specification | RH-4023 |
Product Type | Peripheral Water Pump |
Model | RH-4023 |
Power | 1.0 HP |
Voltage | 220–240 V |
Frequency | 50–60 Hz |
Speed | 2850 RPM |
Min. Flow | 0.6 m³/h |
Max. Flow | 2.88 m³/h |
Min. Head | 3 m |
Max. Head | 65 m |
Working Pressure | 6.5 bar |
Suction Height | Up to 8 m |

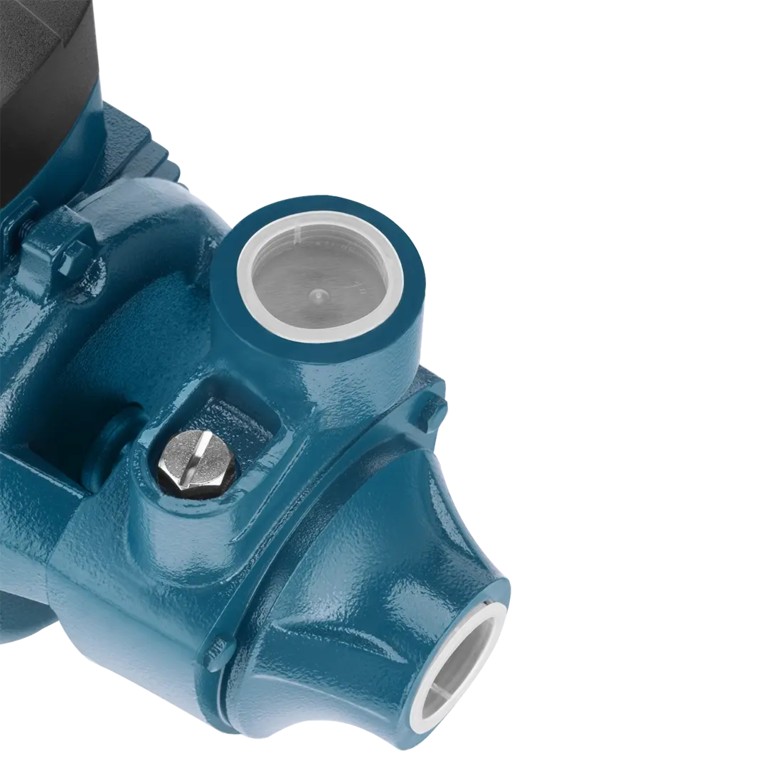

Inlet/Outlet Port | 1" × 1" |
Max. Liquid Temperature | 60°C |
Max. Ambient Temperature | 40°C |
Pump Housing | Cast Iron |
Motor Housing | Aluminum |
Impeller | Brass |
Shaft | 316 + 45 |
Mechanical Seal | Ceramic / Graphite |
Coil Winding | Copper |
Motor Protection | Thermal Protector |
Insulation Class | Class B |
Protection Level | IP44 |
Weight | 9.9 kg |
Packaging | Color Box |
The RH-4023 is intended for clean water and chemically neutral liquids that are free from solids, abrasive particles, excessive viscosity, aggressive substances, and crystallized materials.
Typical applications include:
Domestic water supply
Garden irrigation
Allotment irrigation
Small-scale agricultural irrigation
Household water systems
Small industrial water supply
Water transfer
Garden and landscape maintenance
General clean-water pumping
Its compact peripheral pump construction makes it particularly useful for installations where space is limited and higher head performance is preferred.
For distributors and importers, the RH-4023 offers several commercially useful specifications in a relatively compact package.
High head output: With a maximum head of 65 m and working pressure of 6.5 bar, the pump is designed for higher-head water delivery.
Compact construction: The peripheral pump design provides high-head capability while maintaining compact dimensions.
Durable pump components: Cast iron housing, brass impeller, and 316+45 shaft provide a solid construction for regular clean-water applications.
Reliable motor protection: Thermal protection and Class B insulation help protect the motor during normal operation.
Broad market applications: The pump can be positioned for domestic water supply, garden irrigation, allotments, and small industrial applications.
Retail-ready packaging: Each unit is supplied in a color box, making it suitable for distributor and retail channels.
The Ronix RH-4023 can be positioned as a 1HP peripheral pump, high-head water pump, compact water pump, garden irrigation pump, or domestic water pressure pump, depending on the requirements of your target market.
For water pump distributors, importers, wholesalers, and OEM buyers, its combination of 65 m maximum head, 6.5 bar working pressure, 8 m suction height, brass impeller, cast iron pump housing, and thermal motor protection provides a competitive specification for clean-water pumping applications.
The 220–240 V configuration also makes the RH-4023 suitable for markets using standard single-phase residential and light commercial power supplies.
1HP peripheral pump for domestic and light commercial applications
65 m maximum head for high-head water delivery
6.5 bar working pressure
8 m maximum suction height
2.88 m³/h maximum flow
Compact peripheral pump design
Brass impeller for dependable pumping performance
Cast iron pump housing for a robust structure
316+45 shaft for durable operation
Ceramic/Graphite mechanical seal
Copper coil winding
Thermal motor protection
Class B insulation
IP44 protection
220–240 V power supply
Color box packaging
The RH-4023 is a 1HP peripheral water pump designed to provide high head performance in a compact pump configuration.
The maximum head is 65 m, making it suitable for applications that require relatively high water delivery pressure.
The RH-4023 has a maximum suction height of 8 m under suitable installation conditions.
The maximum flow rate is 2.88 m³/h, while the specified minimum flow is 0.6 m³/h.
The RH-4023 has a maximum working pressure of 6.5 bar.
It is designed for clean water and clean, chemically neutral liquids that are free from solids, abrasives, aggressive substances, crystallized materials, and excessive viscosity. The maximum liquid temperature is 60°C.
Yes. Its 1HP motor, 8 m suction height, and 65 m maximum head make it suitable for many garden irrigation and allotment irrigation systems when properly installed.
The pump housing is made of cast iron, the impeller is brass, the shaft uses 316+45, and the mechanical seal is made from Ceramic/Graphite.
Yes. The motor includes thermal protection, Class B insulation, copper coil winding, and IP44 protection.
The Ronix RH-4023 peripheral pump combines compact dimensions with high-head pumping performance. With a 65 m maximum head, 6.5 bar working pressure, 8 m suction height, and 2.88 m³/h maximum flow, it provides a practical solution for domestic water supply, irrigation, and small industrial applications.
For B2B distributors, water pump importers, wholesalers, and OEM buyers, the RH-4023 offers a balanced combination of performance, durable materials, motor protection, and retail-ready packaging for expanding a professional water pump product range.
