RH-4603
Ronix
Input voltage 220V± 15% No-Load voltage 65v Output Current range 30-180A
Rated Output Voltage 25.2V Max Input Power Capacity 7.6 KVA Max Input Current 34.5A Power Factor 0.75 Duty Cycle 60% Insulation Class F Protection IP21S Electrode Diamete 1.6 - 3.2
Earth clamp+1.8m cable, Welding clamp+1.2m cable, Scotch brush + Hammer, Welding helmet
Ronix Color Box
| Availability: | |
|---|---|
| Quantity: | |
In the evolving world of metal fabrication, construction, and repair work, welding technology has become more advanced, efficient, and accessible than ever before. Among the tools that define this evolution, the Ronix RH-4603 DC Arc Welding Inverter stands out as a compact yet powerful solution designed for both professional welders and entry-level users seeking stable performance and high welding quality.
Built with advanced IGBT inverter technology, intelligent protection systems, and user-friendly control features, the RH-4603 delivers a perfect balance of power, precision, and safety. Whether used on construction sites, workshops, or maintenance environments, this machine provides consistent arc stability, deep penetration, and energy-efficient operation across a wide range of welding applications.
At the heart of the Ronix RH-4603 lies modern IGBT (Insulated Gate Bipolar Transistor) inverter technology, which significantly improves welding efficiency and arc stability. This advanced system ensures smoother current control, reduced energy loss, and more stable arc output during operation.
Compared with traditional welding machines, IGBT-based systems offer several key advantages:
· Improved welding quality with cleaner seams
· Deeper and more consistent penetration
· Lower power consumption and higher efficiency
· Reduced machine size and improved portability
The RH-4603 leverages these benefits to provide a stable welding experience even under fluctuating input conditions, making it suitable for both workshop and field applications.
One of the standout features of the RH-4603 is its excellent arc striking performance. Thanks to its optimized electrical design, the machine provides easy ignition with minimal effort, even on challenging surfaces such as rusted or oxidized metal.
The system is engineered to produce less spatter and more stable arc initiation, which improves overall weld quality and reduces post-weld cleaning time. This is especially important in maintenance and repair applications where surfaces are not always clean or newly prepared.
The combination of stable arc control and reduced spark generation makes the RH-4603 a reliable choice for users who require consistent results in diverse working environments.
The RH-4603 is designed to run 1.6mm to 3.2mm MMA electrodes, making it suitable for a wide range of welding tasks. The ability to use 3.2mm electrodes allows users to perform heavier-duty welding operations with strong joint formation and deeper penetration.
This versatility makes the machine suitable for:
· Structural steel welding
· Metal fabrication and assembly
· Repair and maintenance work
· Construction site applications
· General workshop use
Whether working on thin metal sheets or thicker steel structures, the RH-4603 provides the flexibility needed for professional-grade results.
Safety is a critical aspect of any welding operation, and the Ronix RH-4603 is engineered with a comprehensive multi-protection system that ensures safe and stable performance under demanding conditions.
The built-in protection mechanisms include:
· Over-voltage protection
· Over-current protection
· Over-heat protection
· Over-load protection
These safeguards work together to protect both the machine and the operator from electrical faults or unsafe operating conditions. In case of abnormal power input or excessive load, the system automatically responds to prevent damage, ensuring long-term durability and operational safety.
This intelligent protection system makes the RH-4603 especially suitable for environments where power fluctuations are common.
The RH-4603 is equipped with intelligent welding assistance functions that significantly improve usability, especially for beginners and semi-professional users.
The hot start feature provides a temporary increase in current at the beginning of welding. This ensures quick and reliable arc ignition, reducing the chances of electrode sticking or failed starts.
If the electrode accidentally sticks to the workpiece, the anti-stick function automatically reduces current to prevent overheating and makes it easier to remove the electrode safely.
The machine maintains a consistent arc during welding, minimizing spatter and improving weld bead quality.
Together, these functions make the RH-4603 an ideal choice for entry-level welders while still meeting the expectations of professional users.
Precision control is essential for high-quality welding results. The RH-4603 features an adjustable current range from 30A to 180A, allowing users to fine-tune output based on material thickness and electrode type.

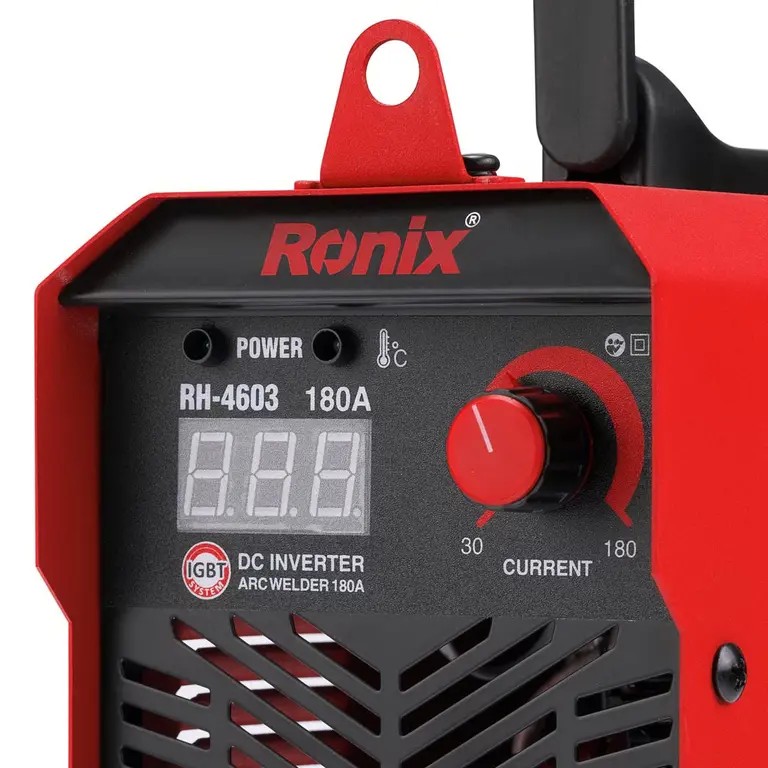

In addition, the machine includes a digital display that provides accurate real-time welding parameters. This allows users to monitor and adjust settings easily, ensuring better control over welding performance.
The integrated current adjustment knob further simplifies operation, enabling fast and intuitive control even in demanding work environments.

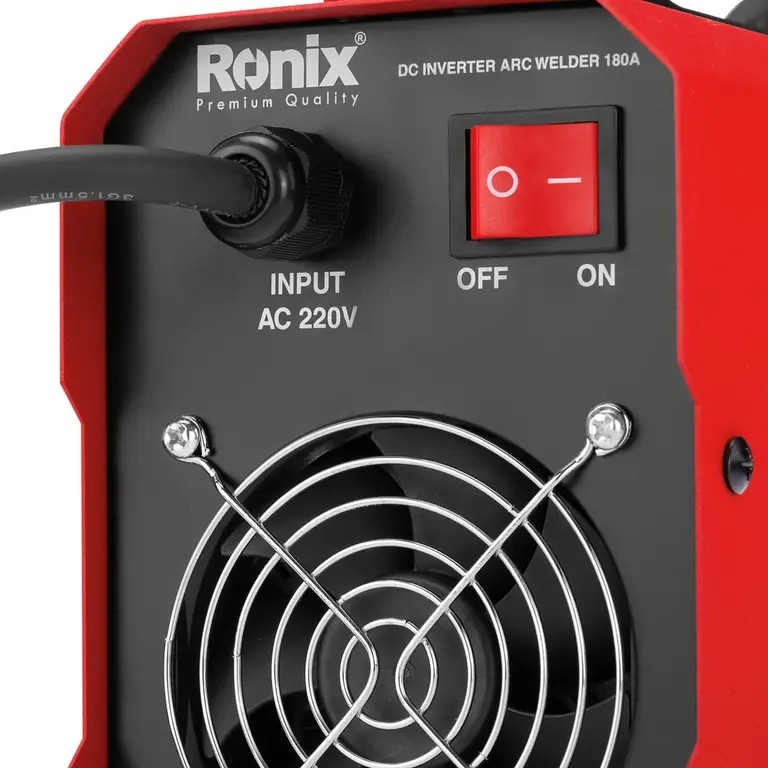

To ensure long-term reliability and stable performance, the RH-4603 is equipped with a professional-grade cooling system designed to manage internal temperature efficiently.
The cooling system plays a key role in:
· Preventing overheating during extended use
· Maintaining stable output performance
· Increasing duty cycle efficiency
· Extending overall machine lifespan
This ensures that the welder can operate continuously for longer periods without performance degradation, making it suitable for intensive job site applications.
The Ronix RH-4603 is engineered with strong technical capabilities to meet professional welding requirements:
· Model: RH-4603
· Input Voltage: 220V ±15%
· No-Load Voltage: 65V
· Output Current Range: 30–180A
· Rated Output Voltage: 25.2V
· Max Input Power Capacity: 7.6 KVA
· Max Input Current: 34.5A
· Power Factor: 0.75
· Duty Cycle: 60%
· Insulation Class: F
· Protection Rating: IP21S
· Electrode Diameter: 1.6–3.2mm
· Packaging: Ronix color box

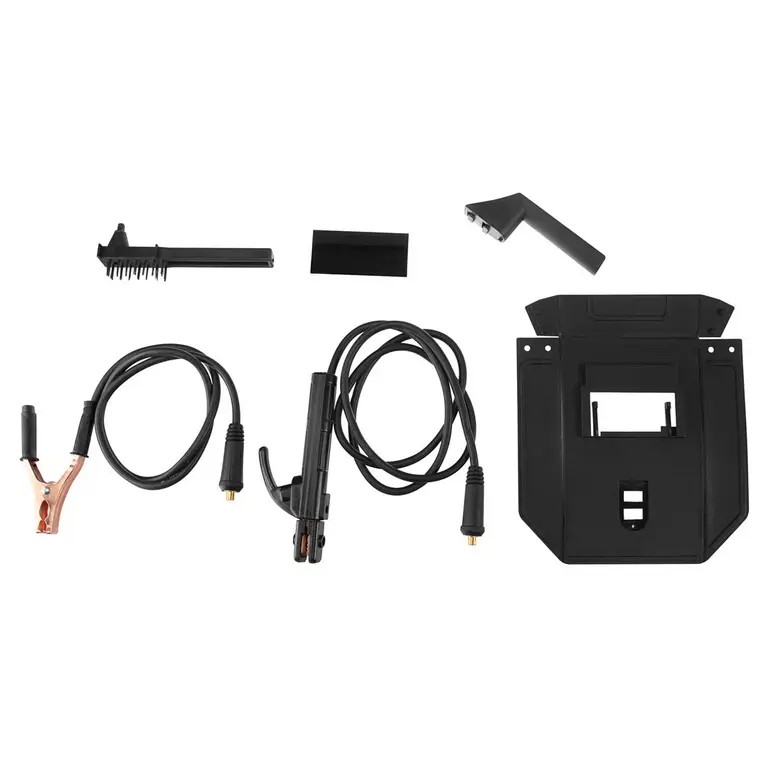

To ensure immediate usability, the RH-4603 comes with a complete set of professional welding accessories, including:
· Earth clamp with 1.8m cable
· Welding clamp with 1.2m cable
· Welding helmet
· Scotch brush and hammer
This comprehensive kit provides everything needed to begin welding operations right out of the box, making it highly convenient for both professionals and beginners.
The RH-4603 is designed for versatile use across multiple industries and environments, including:
· Construction and structural steel work
· Automotive repair and maintenance
· Metal fabrication workshops
· Agricultural equipment repair
· Light industrial manufacturing
· Home DIY welding projects
Its adaptability makes it a valuable tool for both professional contractors and individual users seeking reliable welding performance.
The RH-4603 is built to deliver long-term reliability and cost efficiency. Its advanced inverter system reduces energy consumption while improving welding output quality. The durable construction ensures that the machine can withstand harsh working environments and continuous operation.
By combining efficiency, safety, and performance, the RH-4603 offers excellent long-term value for users who require a dependable welding solution.
One of the most important strengths of the RH-4603 is its accessibility. The machine is designed to be easy to operate, even for beginners, while still offering advanced features for experienced welders.
The intuitive interface, digital display, and simplified controls ensure a smooth learning curve, making it ideal for training environments and entry-level users entering the welding industry.
Safety is deeply integrated into every aspect of the RH-4603 design. From its multi-protection system to its stable arc control and thermal management system, the machine is engineered to minimize risk and maximize operational safety.
The IP21S protection rating adds an additional layer of security against dust and vertical water exposure, making it suitable for various indoor and semi-outdoor environments.
The Ronix RH-4603 DC Arc Welding Inverter represents a modern approach to MMA welding technology. With its advanced IGBT inverter system, intelligent protection features, digital control interface, and strong arc performance, it delivers exceptional welding quality in a compact and efficient design.
Whether used in construction sites, workshops, or maintenance operations, the RH-4603 provides consistent performance, deep penetration, and stable arc control across a wide range of applications.
Its combination of safety, efficiency, and user-friendly design makes it an ideal choice for both beginners and professionals seeking a reliable and versatile welding machine.
The Ronix RH-4603 is not just a welding inverter—it is a complete professional solution designed to perform, protect, and endure in the most demanding working environments.
