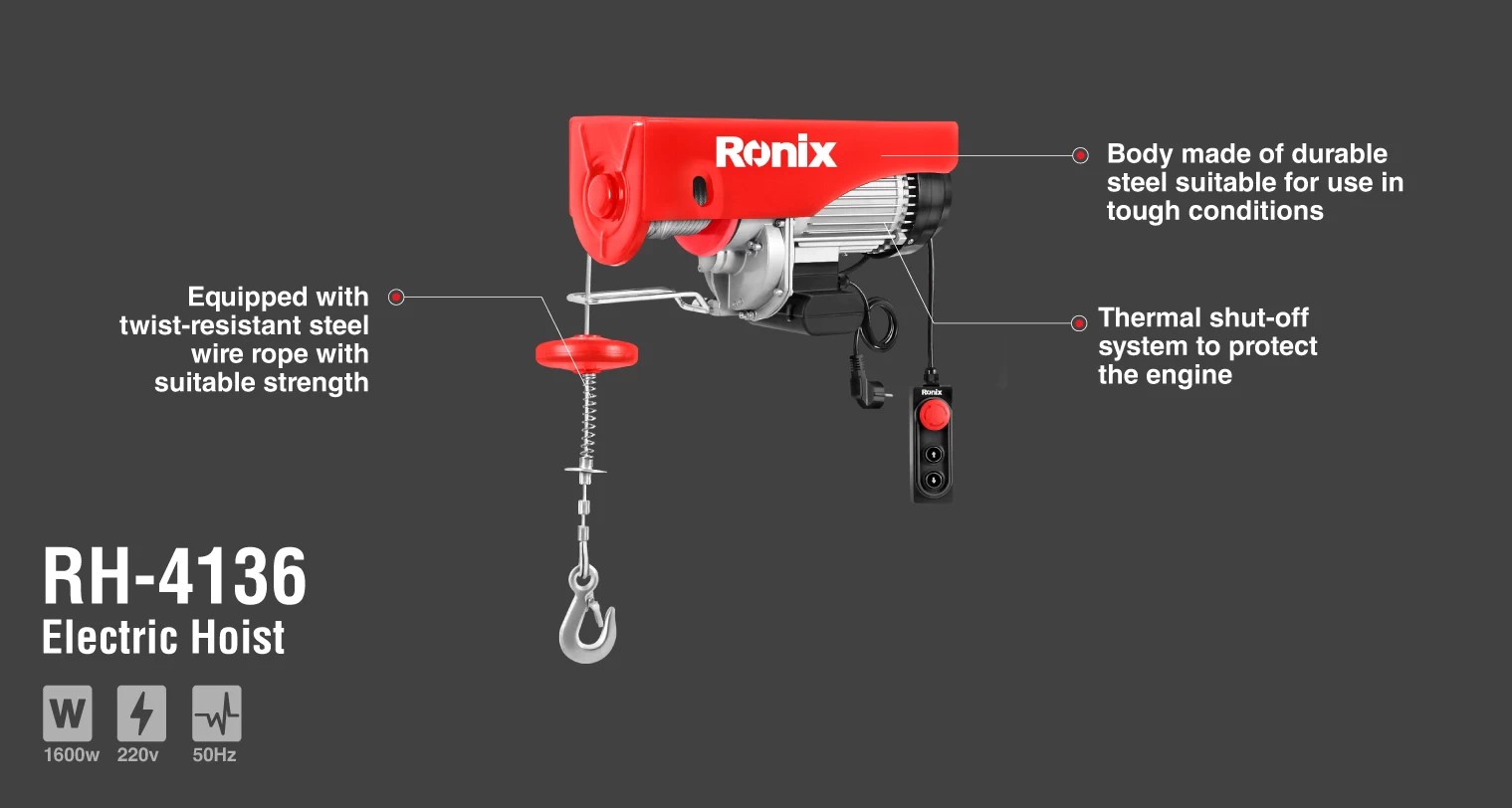

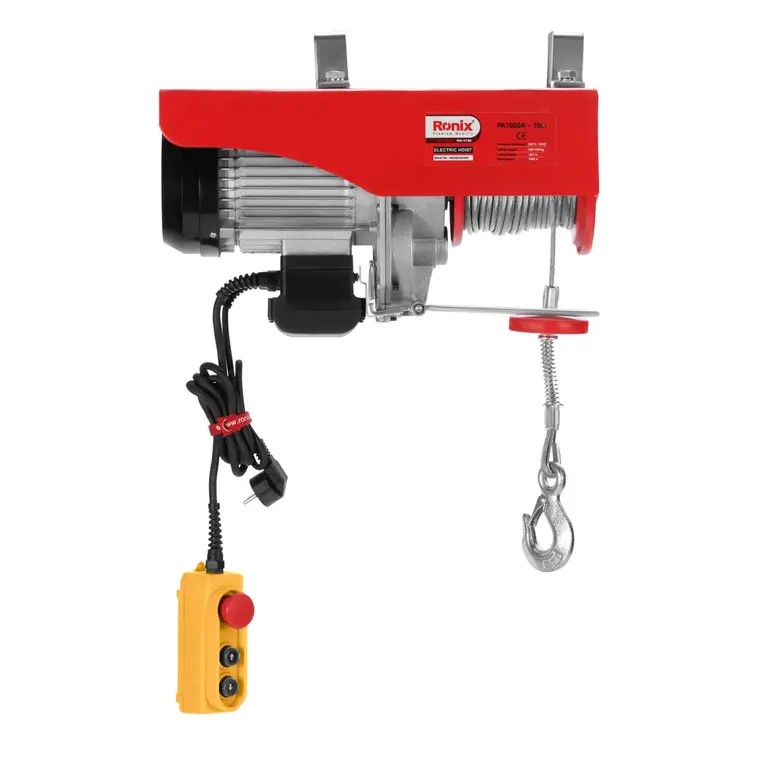

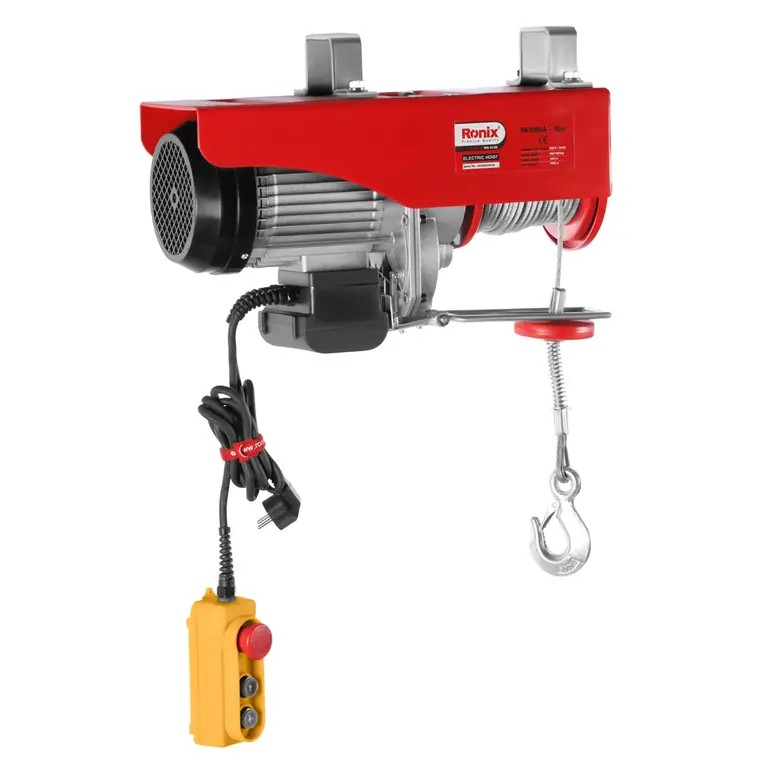

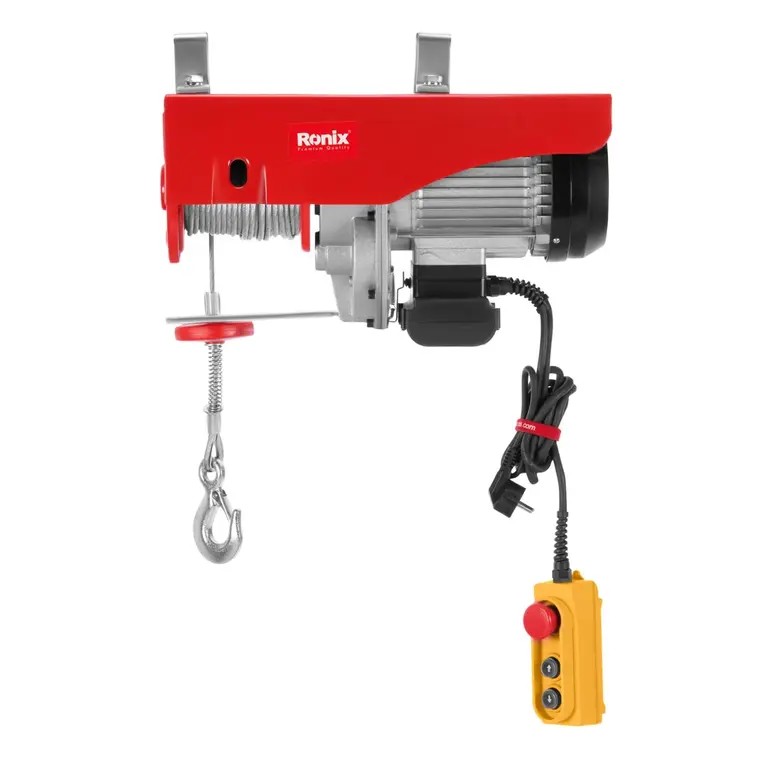

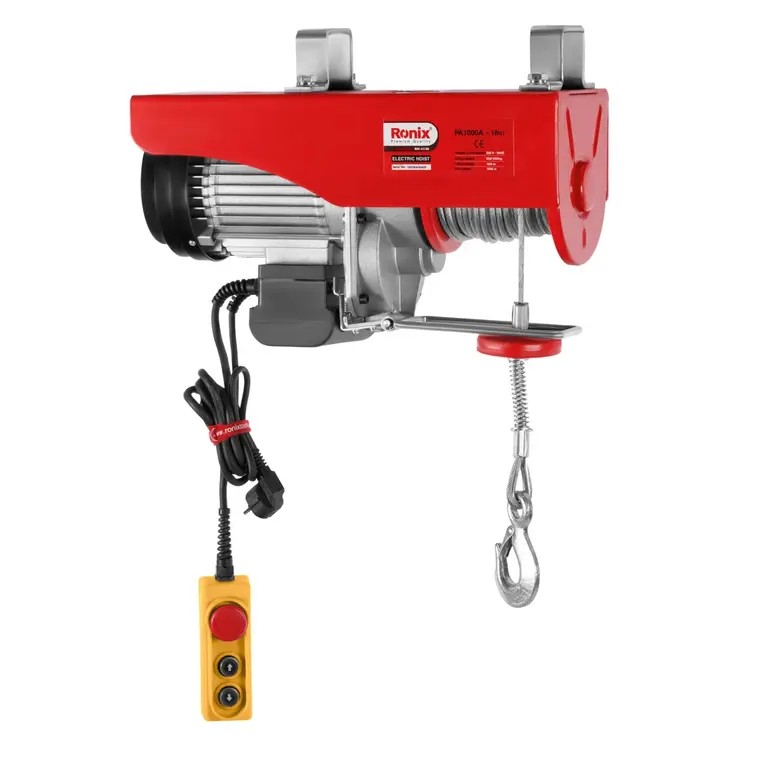

High-Performance 1600W Copper-Wound Motor

At the heart of the Ronix RH-4136 lies a robust 1600W electric motor, engineered with high-quality copper windings. Copper is widely recognized in industrial motor design for its superior electrical conductivity, thermal efficiency, and long service life.

This motor configuration provides several key advantages:

· Higher energy efficiency with reduced power loss

· Improved heat resistance under continuous load

· Stable torque output for smooth lifting performance

· Extended operational lifespan under demanding conditions

The result is a hoist capable of maintaining consistent lifting power even during prolonged or repetitive lifting cycles. This makes it especially suitable for industrial environments where downtime is costly and reliability is critical.

Operating on a 220V power supply, the RH-4136 is compatible with standard industrial electrical systems, making it easy to integrate into existing setups without additional infrastructure requirements.

Dual Load Capacity for Maximum Flexibility

One of the defining strengths of the RH-4136 is its dual lifting capacity system, allowing operators to adapt performance based on job requirements.

· Standard lifting capacity: 500 kg

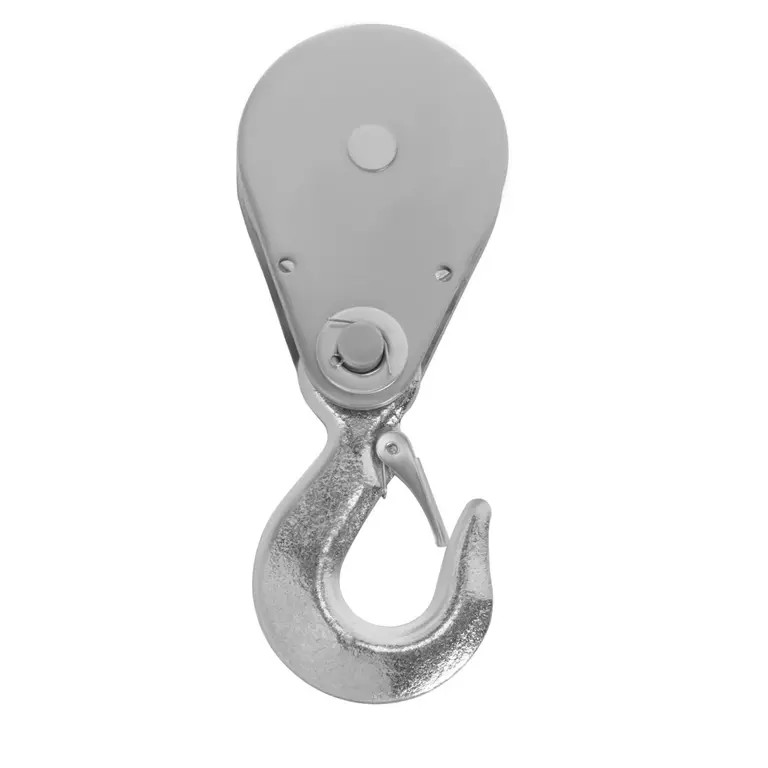

· Double-line lifting capacity: 1000 kg

This dual-mode functionality provides operational flexibility in two important ways:

In standard mode, the hoist prioritizes speed and efficiency, making it ideal for lighter loads that need to be moved quickly and frequently. In double-line mode, the system increases lifting strength while reducing speed, allowing safe handling of significantly heavier materials.

This adaptability ensures the RH-4136 can be used across a wide range of tasks, from general workshop lifting to demanding construction and industrial applications.

Optimized Lifting Height and Performance Speed

The Ronix RH-4136 is designed to deliver both reach and control, depending on the selected configuration.

· Standard lifting height: 18 meters

· Double-line lifting height: 9 meters

This configuration allows users to choose between maximum vertical reach or maximum lifting strength, depending on the job requirements.

Speed performance is also carefully balanced:

· Standard lifting speed: 10 meters per minute

· Double-line lifting speed: 5 meters per minute

The reduction in speed under heavy load conditions is a deliberate engineering decision. It ensures greater load stability, minimizes oscillation, and enhances operator control during critical lifting operations.

This balance between speed and safety is essential in professional environments where precision handling is required.

Heavy-Duty Steel Body for Industrial Environments

The RH-4136 is constructed with a durable industrial-grade steel housing, designed specifically to withstand harsh working conditions.

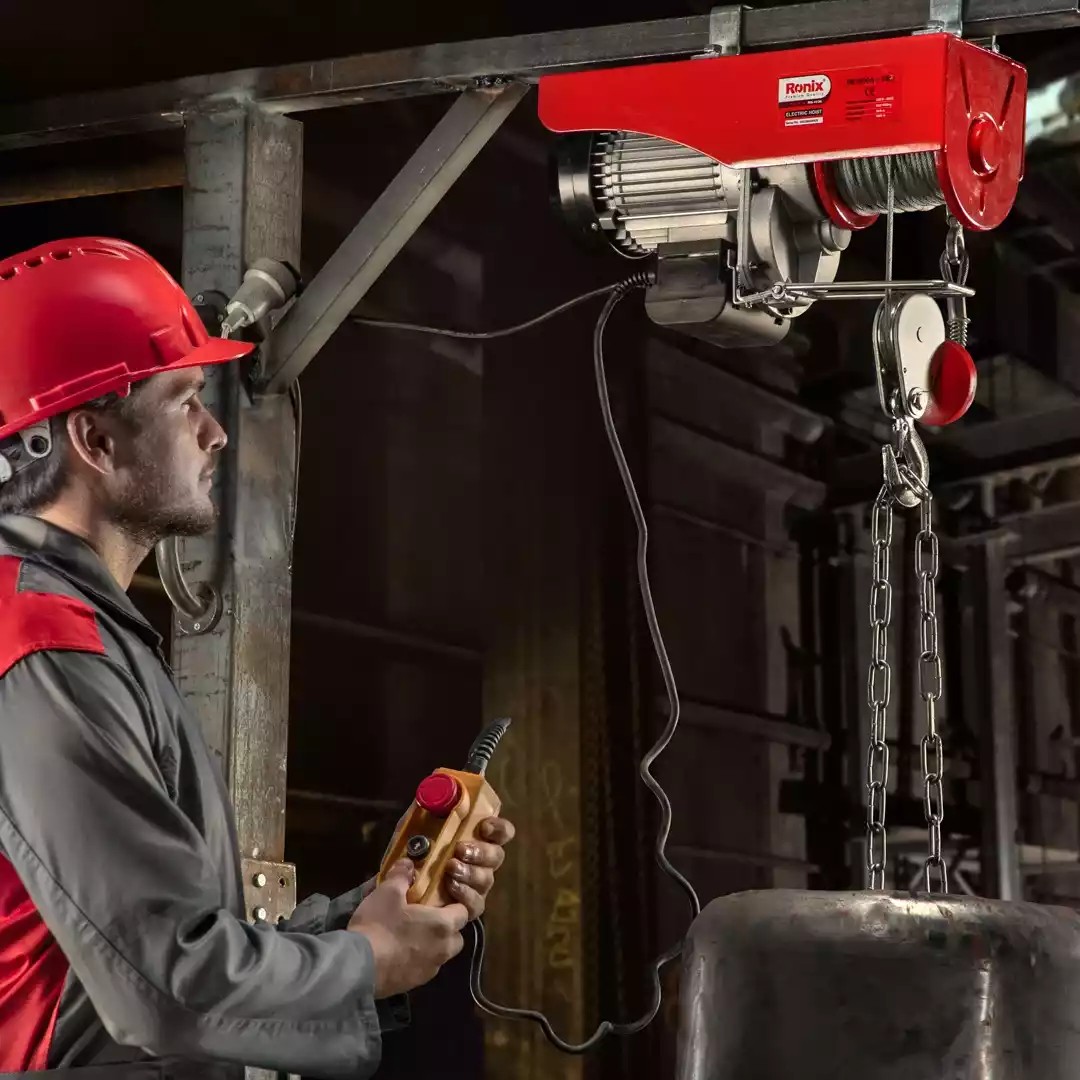

In environments such as construction sites, warehouses, and manufacturing plants, equipment is frequently exposed to dust, vibration, mechanical impact, and continuous operational stress. The steel body of the RH-4136 provides:

· Strong structural integrity under heavy loads

· Resistance to deformation and mechanical wear

· Protection for internal motor and electrical components

· Long-term durability in demanding environments

This rugged construction ensures that the hoist maintains performance stability even after extended use in challenging industrial settings.

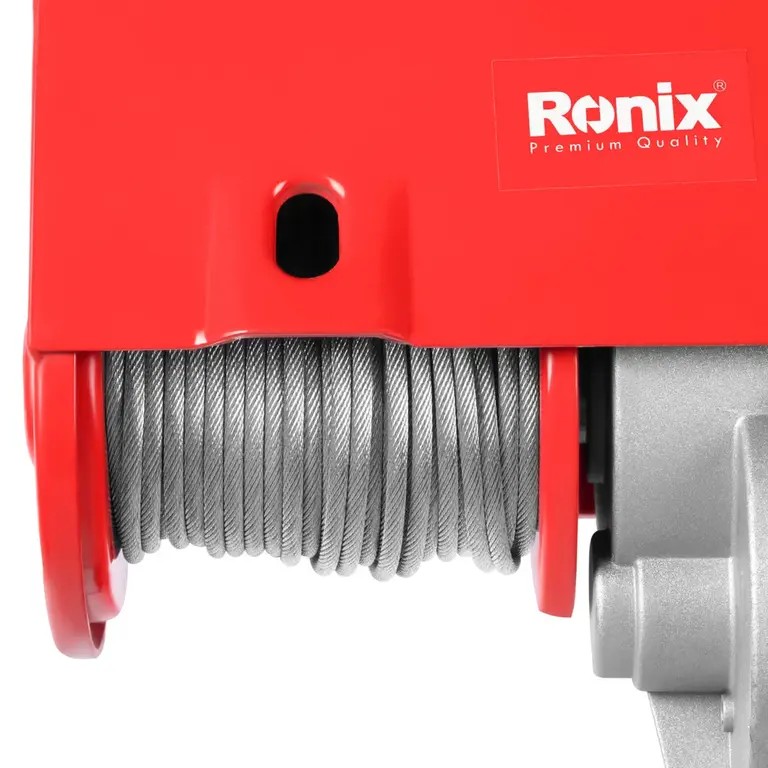

High-Strength 18m Steel Wire Rope

A critical component of any lifting system is its cable, and the RH-4136 is equipped with a high-strength steel wire rope designed for durability and safety.

Key specifications include:

· Cable length: 18 meters

· Cable diameter: 6 mm

· Cable strength: greater than 2500 kg

The increased cable diameter compared to lighter models provides enhanced load-bearing capacity and improved resistance to wear and deformation.

The wire rope is engineered with twist-resistant construction, ensuring smooth winding and reducing the risk of tangling or uneven stress distribution during lifting operations. This improves both safety and operational efficiency.

Advanced Safety Systems for Maximum Protection

Safety is a fundamental design priority in the Ronix RH-4136 Electric Hoist. It is equipped with multiple protective systems that work together to safeguard both operators and equipment.

Thermal Protection Switch

The hoist includes a thermal cut-off switch, which automatically activates when the motor reaches unsafe temperature levels. This prevents overheating and protects the motor from long-term damage caused by excessive load or continuous operation.

This feature significantly improves service life and reduces maintenance costs by preventing heat-related failures.

Automatic Upper Limit Cut-Off System

The RH-4136 also includes an automatic upper limit stop system, which prevents the hook from over-traveling beyond its safe operational height.

This system helps prevent:

· Cable overwinding

· Mechanical strain on the drum system

· Accidental collision with the pulley mechanism

· Structural damage to the hoist

Together, these safety mechanisms ensure controlled and reliable lifting operations in all working conditions.

IP54 Protection for Harsh Working Conditions

Industrial environments often expose equipment to dust, moisture, and fluctuating environmental conditions. The RH-4136 is built with an IP54 protection rating, which ensures reliable operation in such environments.

This rating provides:

· Protection against limited dust ingress

· Protection against water splashes from any direction

This makes the hoist suitable for both indoor and semi-outdoor applications, including construction sites, fabrication workshops, logistics centers, and maintenance facilities.

The IP54 rating ensures consistent performance even in environments where cleanliness and environmental control are not guaranteed.
