Designed for Professional Lifting Tasks

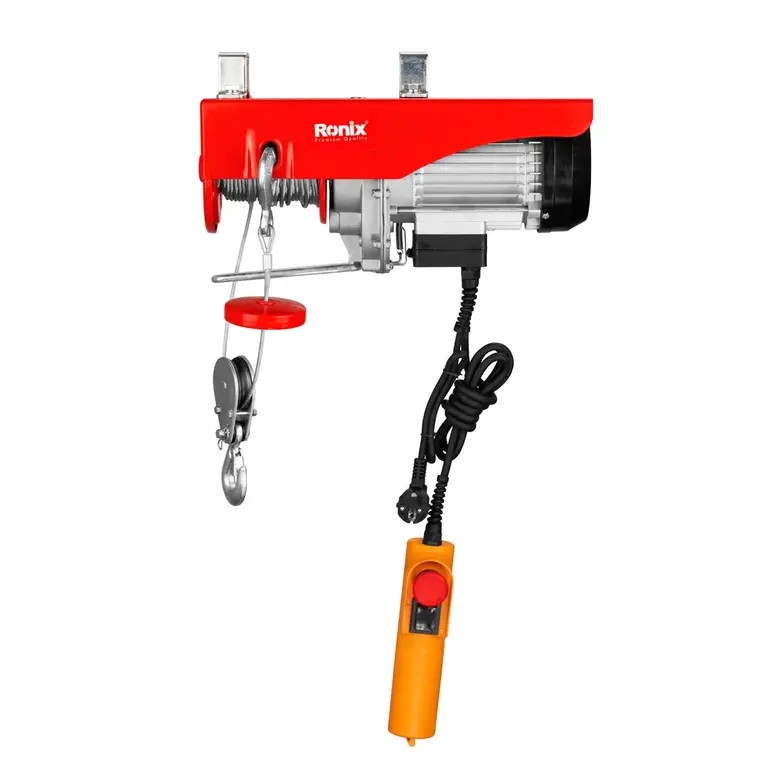

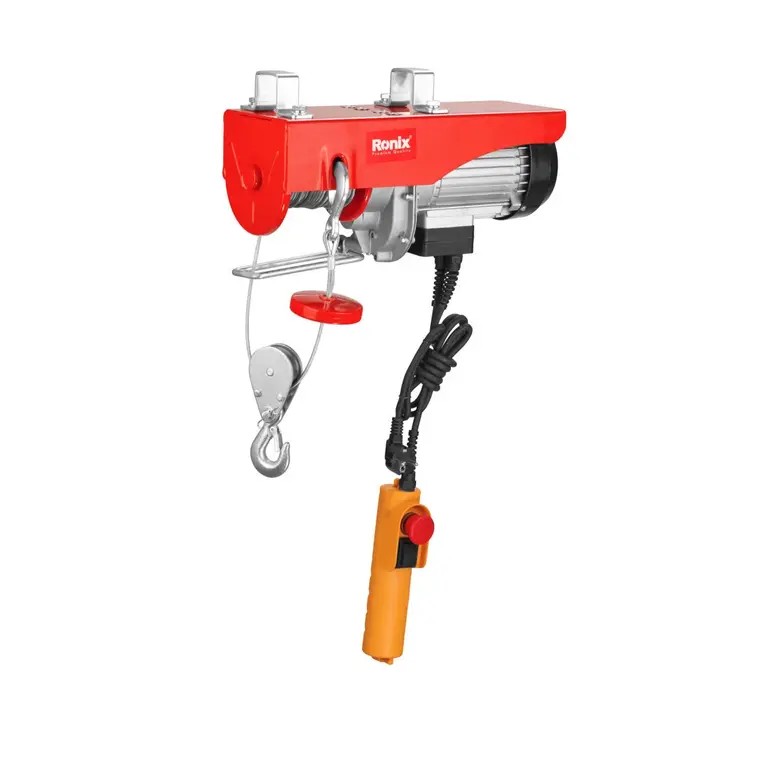

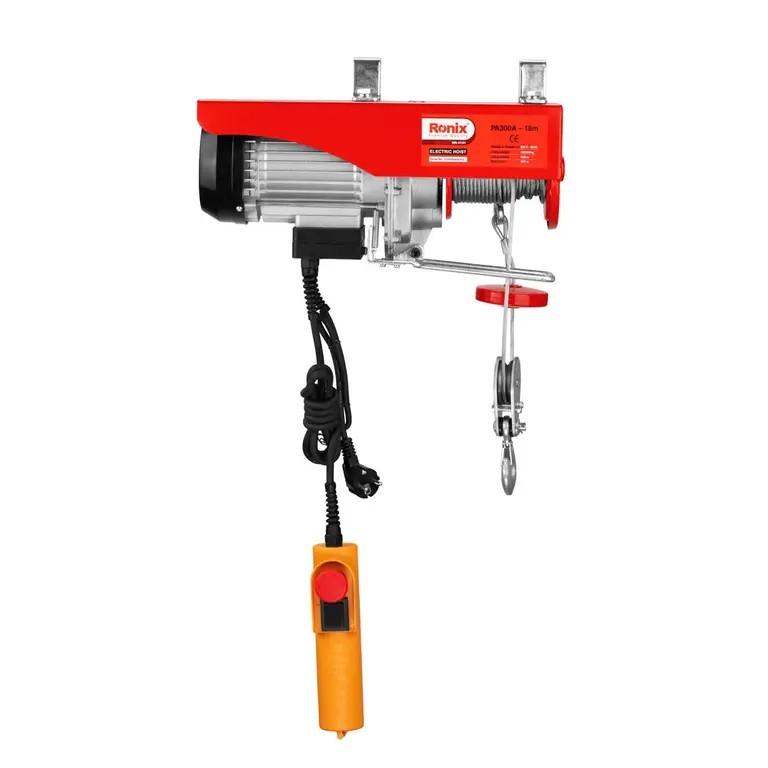

Modern workplaces require lifting equipment that can perform efficiently under demanding conditions. The Ronix RH-4131 is developed with these requirements in mind. Its robust structure and carefully selected components enable it to handle frequent lifting operations while maintaining stable performance.

With a lifting capacity of 150kg in standard mode and 300kg in double-line mode, the RH-4131 offers flexibility for different applications. Users can easily adapt the hoist according to the weight of the load and the required lifting height.

The standard lifting configuration provides a maximum lifting height of 18 meters, making it ideal for taller workspaces and high-reaching tasks. When configured in double-line mode, the lifting capacity doubles to 300kg while the maximum lifting height becomes 9 meters, providing additional strength for heavier materials.

This versatility makes the RH-4131 suitable for a wide range of industries, including:

· Construction projects

· Warehouses and logistics centers

· Manufacturing facilities

· Automotive workshops

· Maintenance departments

· Agricultural operations

· Equipment installation projects

· Home garages and workshops

High-Performance 550W Copper-Winding Motor

At the heart of the Ronix RH-4131 lies a powerful 550W electric motor designed to deliver consistent and reliable lifting power.

Unlike conventional motors that may suffer from excessive heat generation and reduced efficiency, the RH-4131 utilizes high-quality copper windings. Copper-winding motors are widely recognized for their superior conductivity, enhanced durability, and better thermal performance. This design helps maximize energy efficiency while ensuring stable operation during demanding lifting tasks.

The motor operates on:

· Voltage: 220V

· Frequency: 50Hz

· Power Output: 550W

This combination enables the hoist to generate the necessary torque for lifting heavy loads smoothly and efficiently. Whether handling repetitive lifting cycles or occasional heavy-duty tasks, the motor delivers dependable performance that professionals can trust.

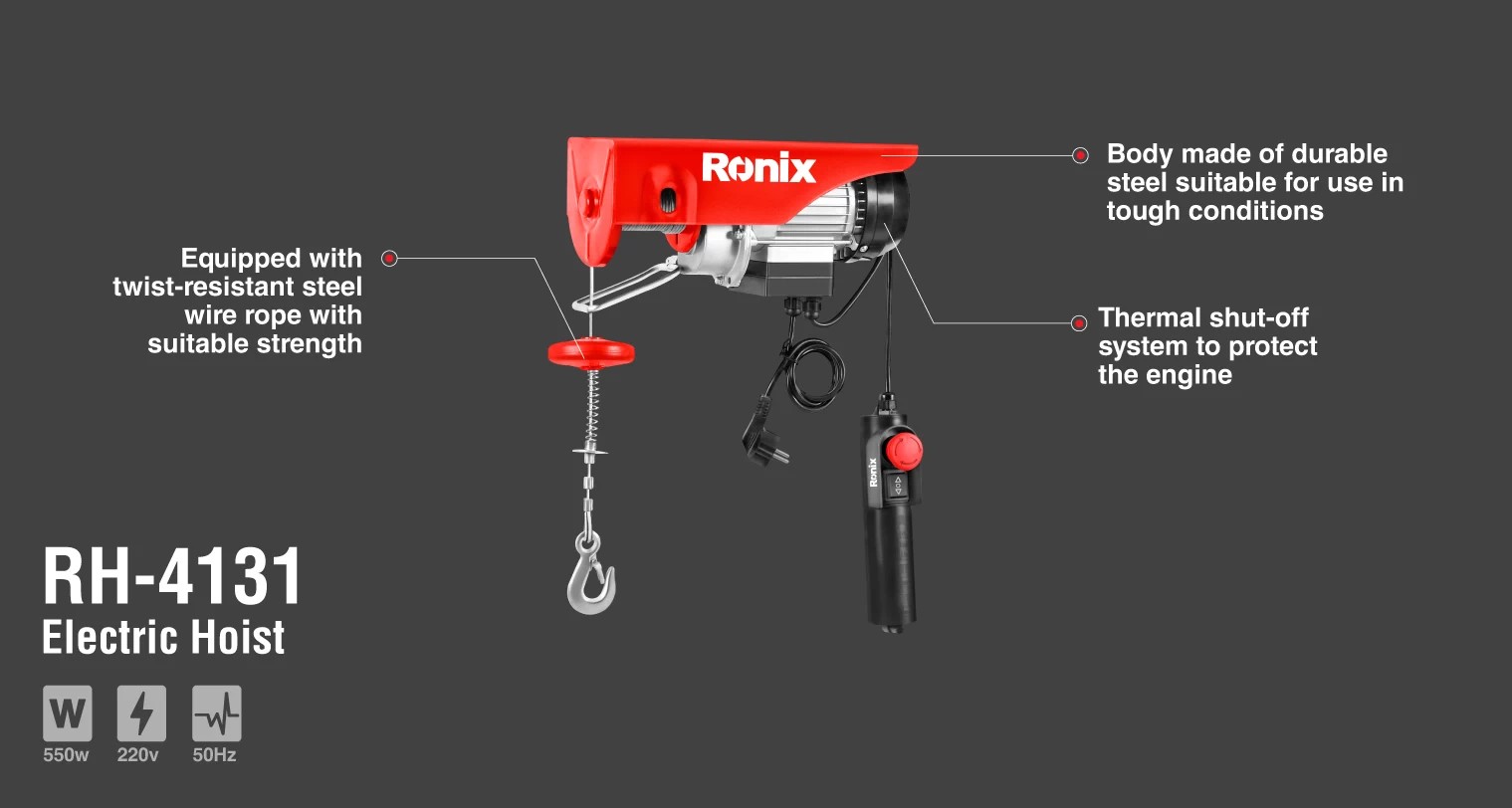

Durable Steel Body for Tough Working Conditions

Industrial environments often expose equipment to harsh conditions, including impacts, dust, vibrations, and heavy workloads. To address these challenges, the Ronix RH-4131 features a heavy-duty steel body specifically designed for durability and long service life.

The steel housing protects critical internal components from external damage while maintaining structural stability during operation. This rugged construction ensures that the hoist remains reliable even when used in demanding jobsite conditions.

Benefits of the steel body include:

· Enhanced mechanical strength

· Improved resistance to impacts

· Long-term durability

· Greater operational reliability

· Reduced maintenance requirements

Whether installed in a busy warehouse or on a construction site, the RH-4131 is built to withstand daily professional use.

Twist-Resistant Steel Wire Rope

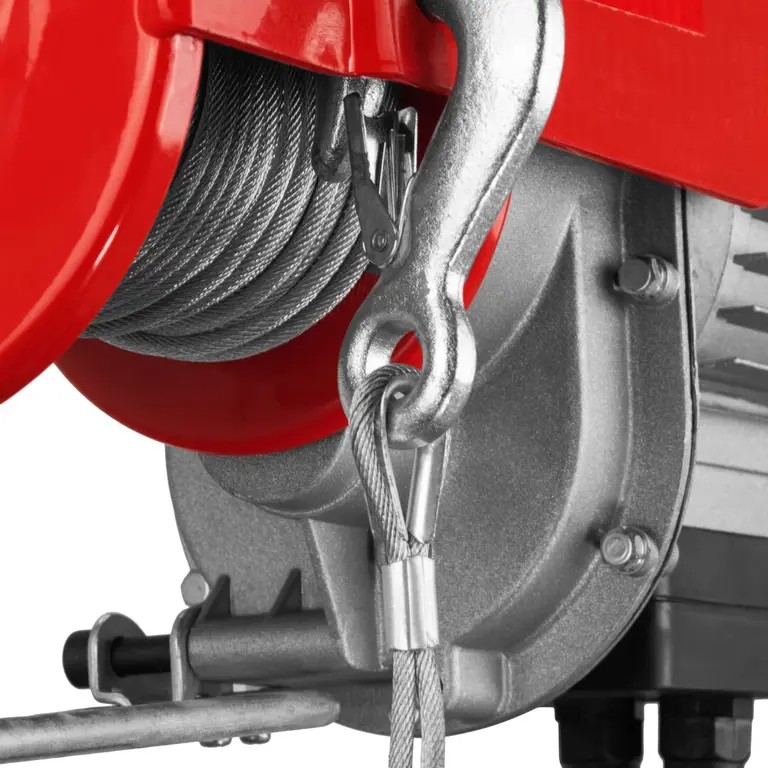

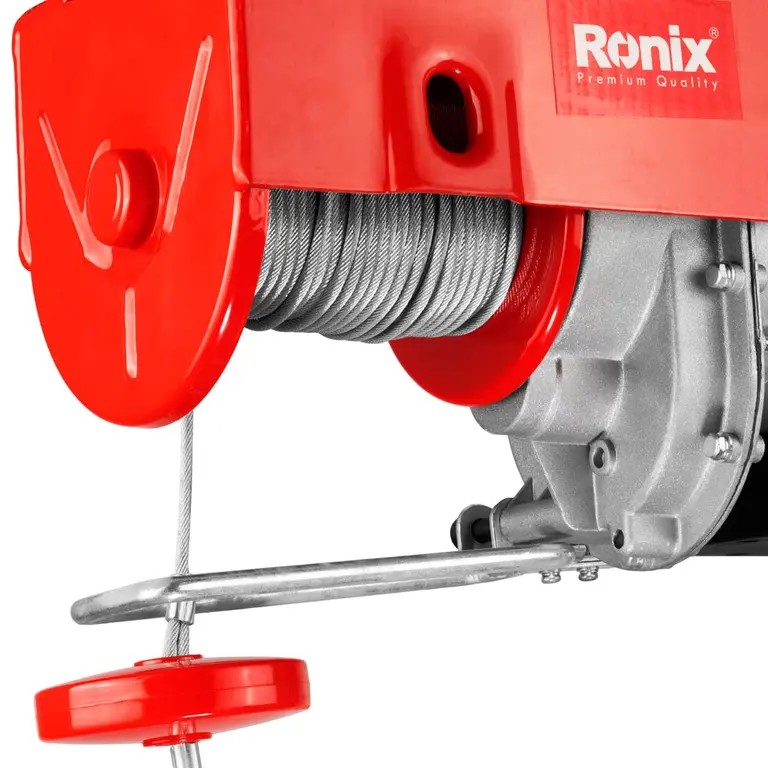

A key component of any electric hoist is its lifting cable. The Ronix RH-4131 is equipped with a high-strength twist-resistant steel wire rope that ensures safe and stable lifting performance.

The wire rope features:

· Length: 18 meters

· Diameter: 3.05mm

· Cable Strength: ≤750kg

The specially engineered steel rope minimizes twisting and tangling during operation, helping maintain smooth lifting and lowering movements. This design improves load stability and reduces wear on both the cable and lifting mechanism.

The long 18-meter cable also provides excellent reach, allowing operators to work efficiently in high-ceiling facilities, warehouses, and construction projects where significant lifting height is required.

Dual Lifting Modes for Greater Flexibility

One of the standout features of the RH-4131 is its ability to operate in two different lifting configurations.

Standard Single-Line Mode

In standard mode, the hoist offers:

· Maximum Load Capacity: 150kg

· Maximum Lifting Height: 18m

· Lifting Speed: 10m/min

This configuration is ideal when greater lifting height is needed and the load weight falls within the 150kg capacity range.

Applications include:

· Lifting tools and equipment

· Material handling

· Installation tasks

· Warehouse operations

· Maintenance work

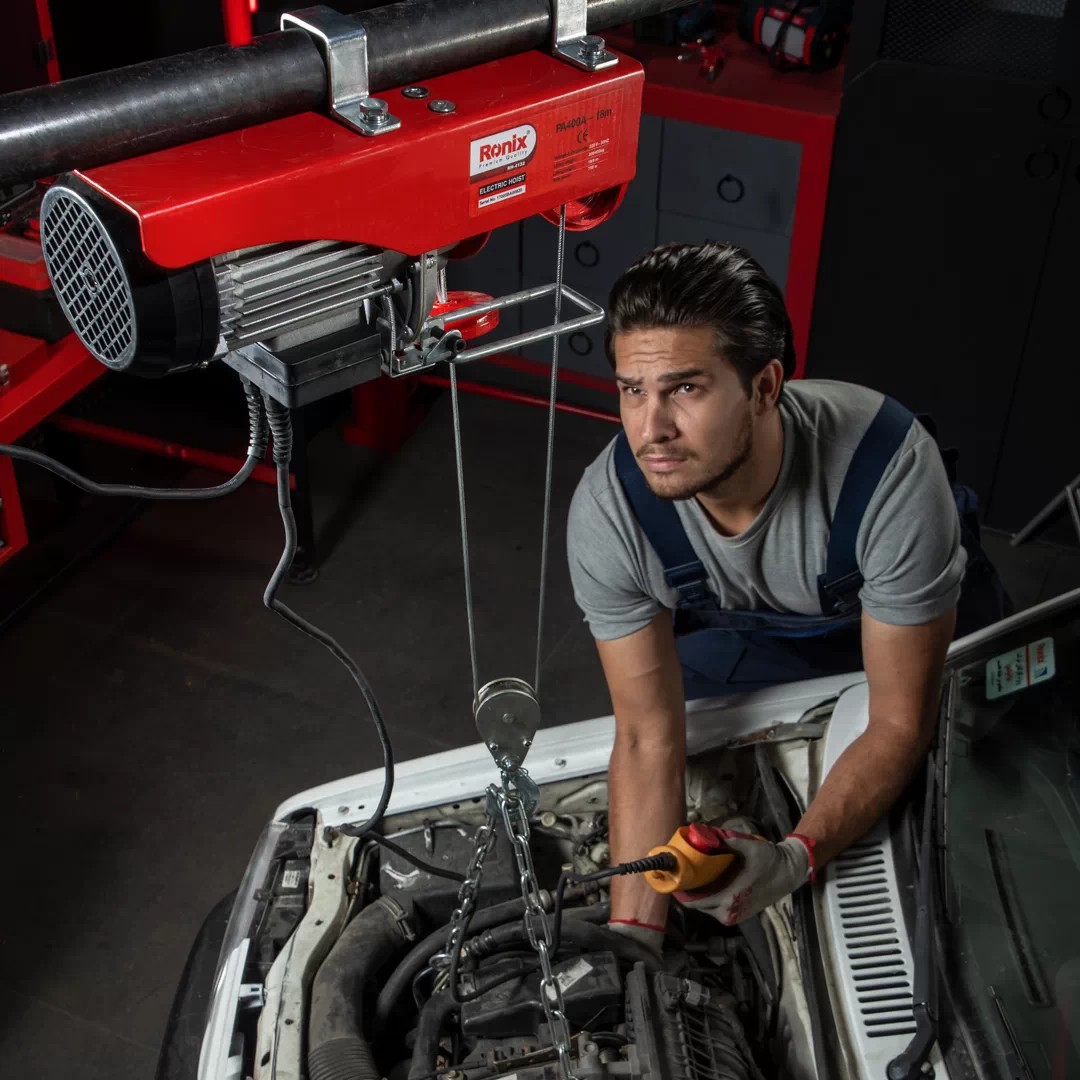

Double-Line Mode

By utilizing the pulley hook system, the hoist can be converted into double-line mode, providing:

· Maximum Load Capacity: 300kg

· Maximum Lifting Height: 9m

· Lifting Speed: 5m/min

This configuration increases lifting strength, making it suitable for heavier loads while maintaining precise and controlled movement.

Applications include:

· Machinery parts lifting

· Construction materials handling

· Industrial equipment installation

· Heavy maintenance operations

The ability to switch between these two modes significantly expands the versatility of the RH-4131 and allows users to adapt the hoist to different job requirements.

Advanced Safety Features

Safety is one of the most critical aspects of lifting operations. The Ronix RH-4131 incorporates several advanced safety systems to help protect both operators and equipment.

Thermal Shut-Off Protection System

Continuous operation can generate heat within the motor. Excessive temperatures may reduce motor life and affect performance.

To prevent overheating, the RH-4131 is equipped with a thermal protection system that automatically shuts off the motor when abnormal temperatures are detected. Once the motor cools to a safe operating range, normal operation can resume.

Advantages include:

· Motor protection

· Longer service life

· Reduced maintenance costs

· Increased operational reliability

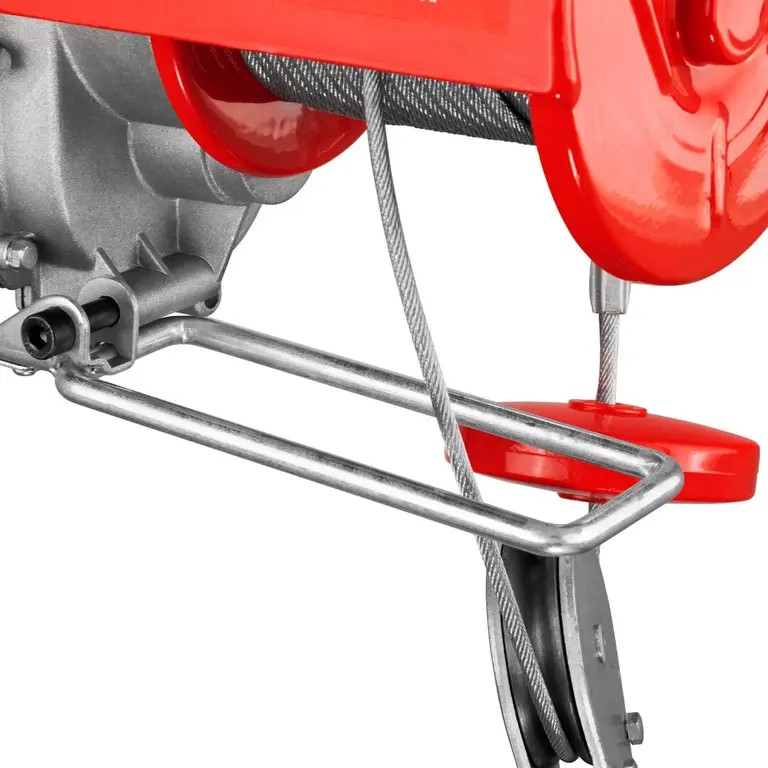

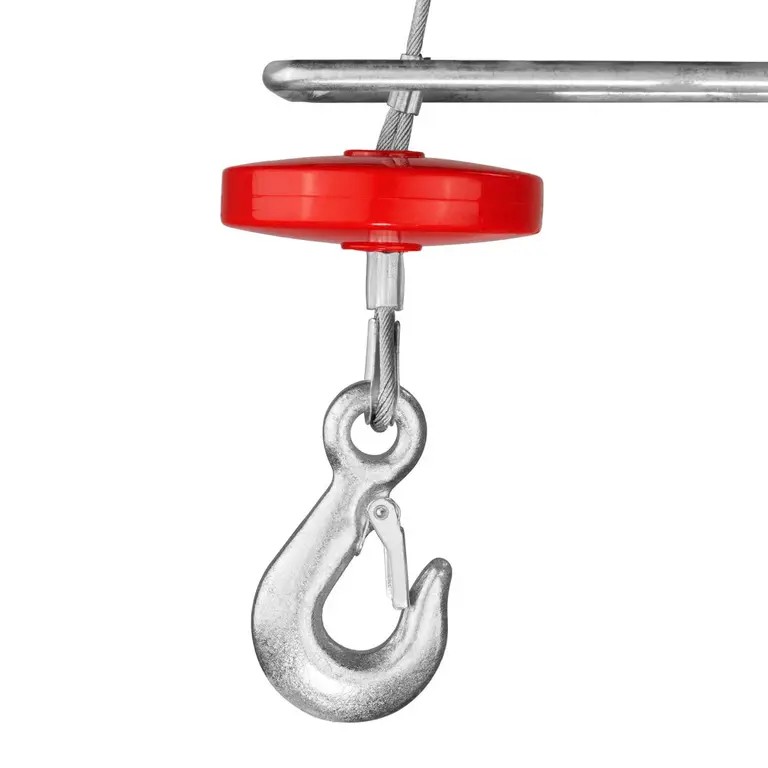

Automatic Upper Limit Cut-Off System

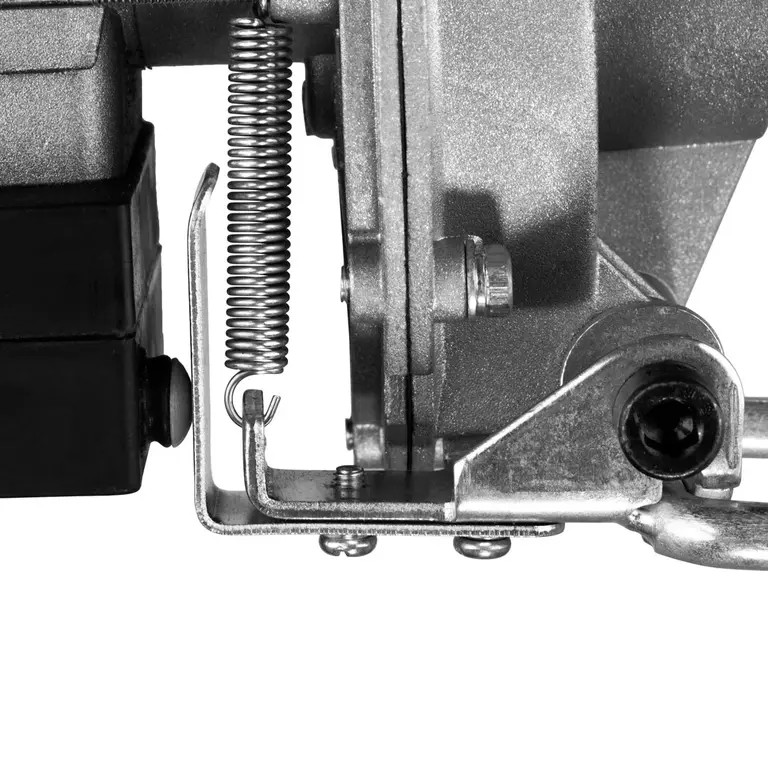

Over-lifting can damage equipment and create dangerous situations. To address this risk, the RH-4131 features an automatic upper limit switch.

When the hook reaches the maximum lifting position, the system automatically stops operation, preventing the load from being pulled beyond the safe limit.

Benefits include:

· Improved operational safety

· Protection of internal components

· Reduced risk of cable damage

· Enhanced lifting precision

These integrated safety mechanisms make the RH-4131 a dependable solution for professional lifting applications.

IP54 Protection Rating

Work environments often expose equipment to dust, dirt, and moisture. The Ronix RH-4131 is manufactured with an IP54 protection rating, providing additional durability and reliability.

The IP54 classification indicates protection against:

· Dust ingress that may affect operation

· Water splashes from various directions

This level of protection makes the hoist suitable for use in industrial facilities, workshops, warehouses, and semi-outdoor environments where exposure to dust and moisture may occur.

Compliance with European CE Standards

Quality and safety are essential considerations when selecting lifting equipment. The Ronix RH-4131 is produced according to European CE standards, ensuring compliance with recognized safety and quality requirements.

CE certification demonstrates that the product has been designed and manufactured to meet strict standards regarding:

· Safety

· Performance

· Reliability

· Environmental considerations

This gives users additional confidence in the product's quality and operational integrity.
