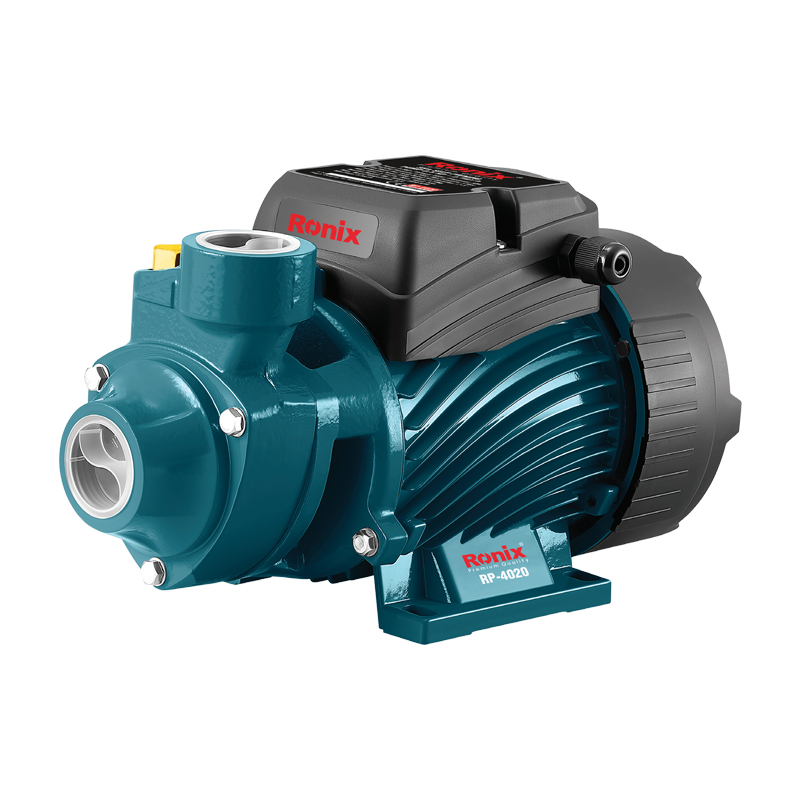

RONIX SEIF-PRIMING JET PUMP CENTRIFUGAL PUMP SUBMERSIBLE PUMP

Model:RP-4020

Power: 0.5HP

Voltage:220V

Frequency: 50Hz

Speed: 2850RPM

Max. Head: 35m

Max.Flow: 35L/Min

Inlet/Outlet Port Diameter: 1"x1"

Min.Flow: 0.3m3/h

Min.Head: 3m

Suction Height: 8m

Maximum Lift: 65m

Maximum Liquid Temperature:40°C

Maximum Pressure: 5Bar

Working Pressure:3.5Bar

Protection Class: IPx4

Weight:5.1Kg

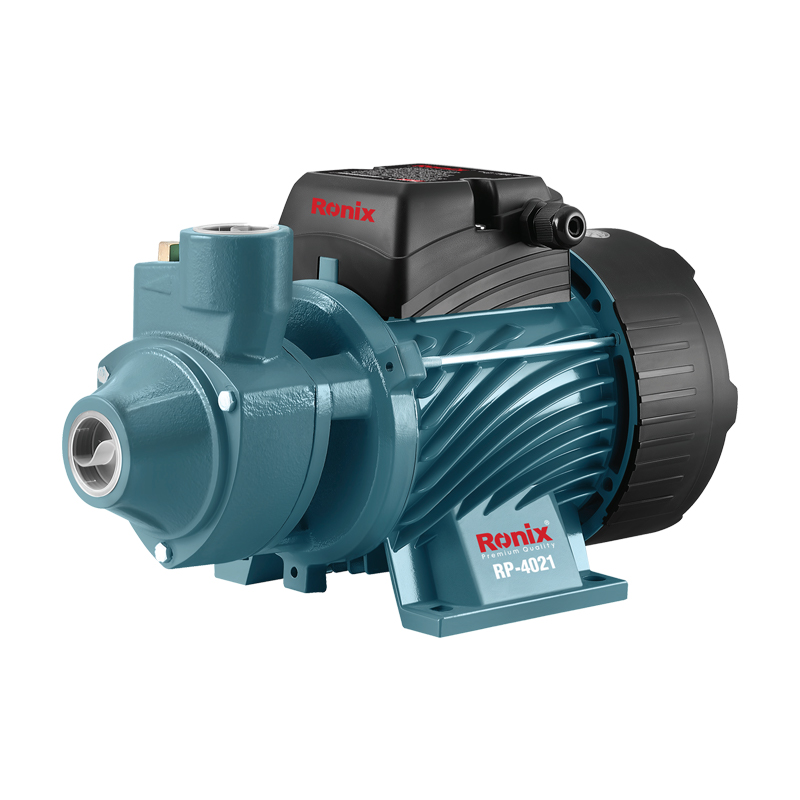

RP-4021 56mSEIF-PRIMING PUMP1HP-45L/M

Power: 1HP

Voltage: 220V

Frequency: 50Hz

Speed: 2850RPM

Max.Head: 56m

Max.Flow: 45L/Min

InletOutlet Port Diameter: 1’X1’

Min.Flow: 0.5m3/h

Min.Head: 4m

Suction Height: 8m

Maximum Lift:65m

Maximum Liquid Temperature: 40°C

Maximum Pressure: 8Bar

Protection Class: IPX4

Weight: 9Kg

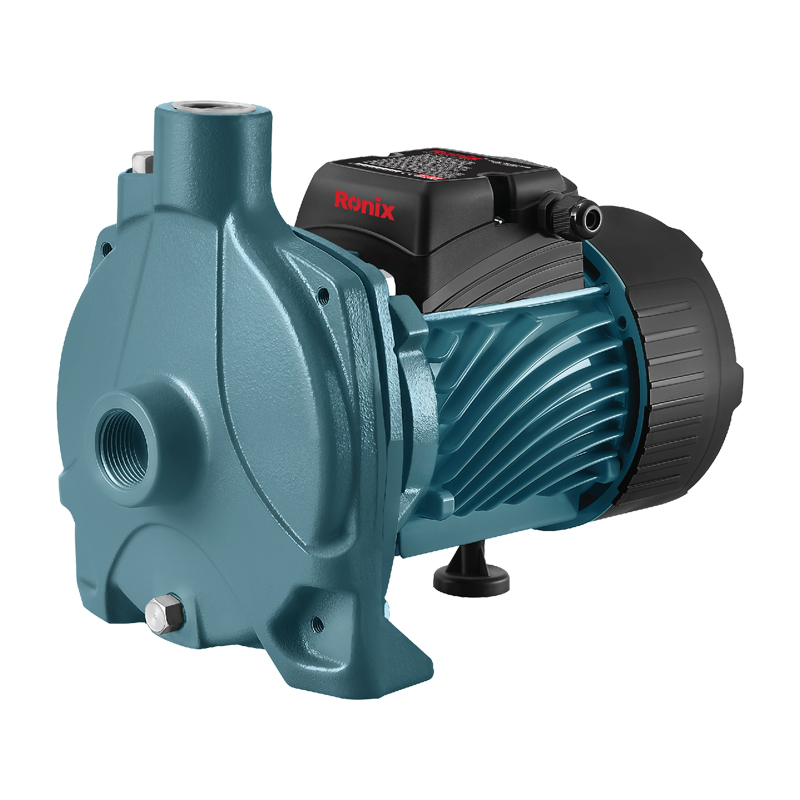

RP-4030 32mCENTRIFUGAL PUMP1HP-125L/M

Power: 1HP

Voltage: 220V

Frequency: 50Hz

Speed:2850RPM

Max.Head: 32m

Max.Flow: 125L/Min

Inlet/Outlet Port Diameter: 1’X1’

Min.Flow: 0.5m3/h

Min.Head: 18m

Maximum Lift: 65m

Maximum Liquid Temperature: 40°C

Maximum Pressure: 5Bar

Protection Class:lPX4

Weight: 13.5Kg

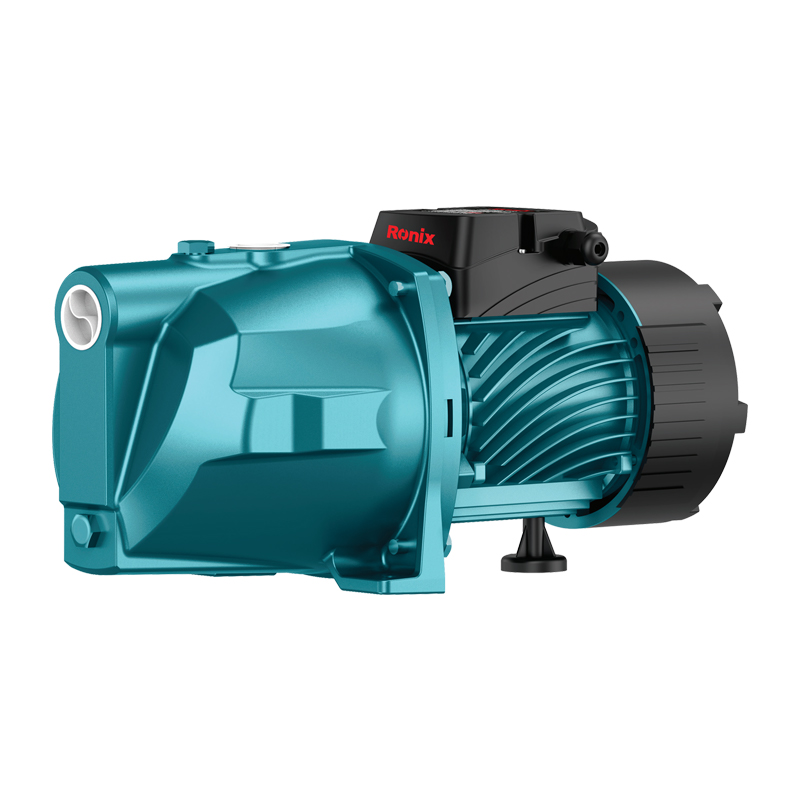

RP-4050 43m -PRIMING JET PUMP 1HP-55L/M

Power: 1HP

Voltage: 220V

Frequency: 50Hz

Speed: 2850RPM

Max.Head: 43m

Max.Flow: 55L/Min

Inlet/Outlet Port Diameter: 1”X1

Min.Flow: 0.5m¾h

Min.Head: 5m

Suction Height: 8m

Maximum Lift: 65m

Maximum Liquid Temperature: 40°C

Maximum Pressure: 7.5Bar

Protection Class: IPX4

Weight: 11.5Kg

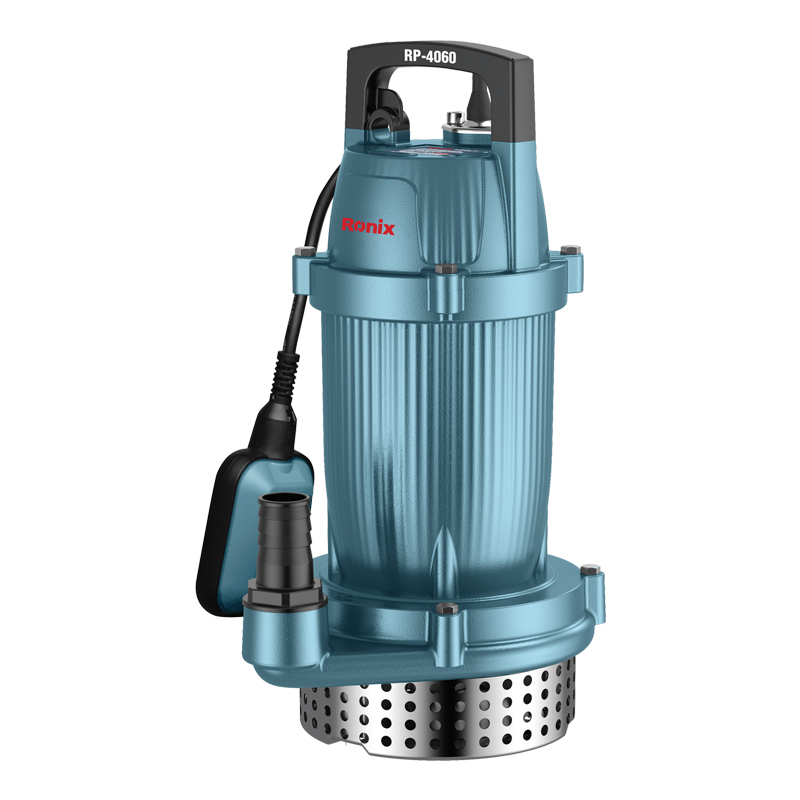

RP-4060 33m SUBMERSIBLE PUMP1HP-120L/M

Power: 1HP

Voltage: 220V

Frequency: 50Hz

Speed:2900RPM

Max.Head: 33m

Max.Flow:120L/Min

Outlet Port Diameter: 1’

Min.Flow: 1m³/h

Min.Head: 5m

Solid Passage Diameter: 0.2m

Max lmmersion Depth: 5m

Maximum Liquid Temperature: 40°C

Max Dry Running Time: 60seconds

Working Pressure: 0-1.8Bar

Protection Class: IP68

Weight: 12.8Kg
