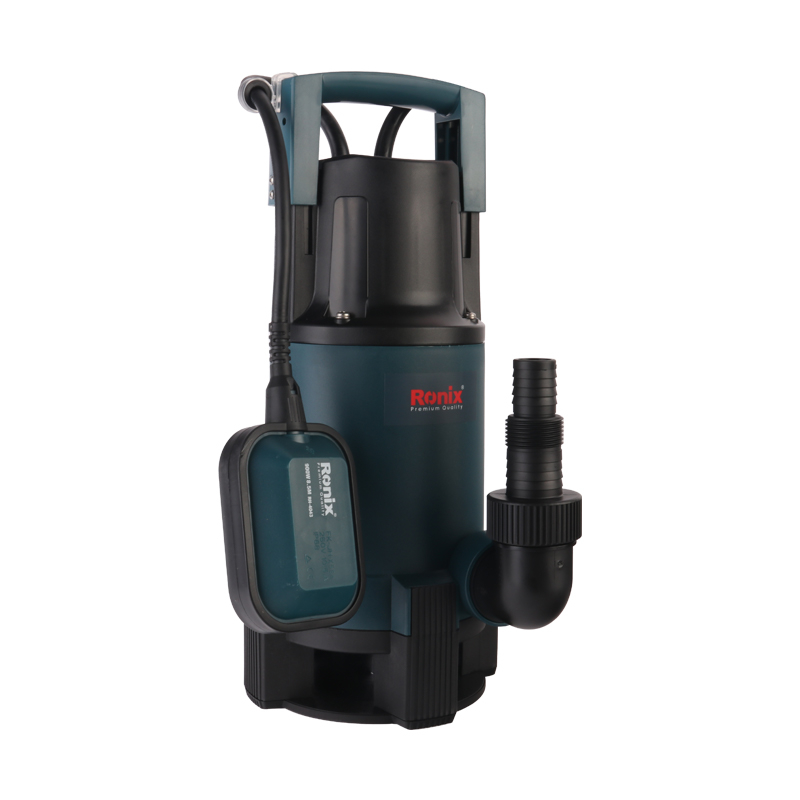

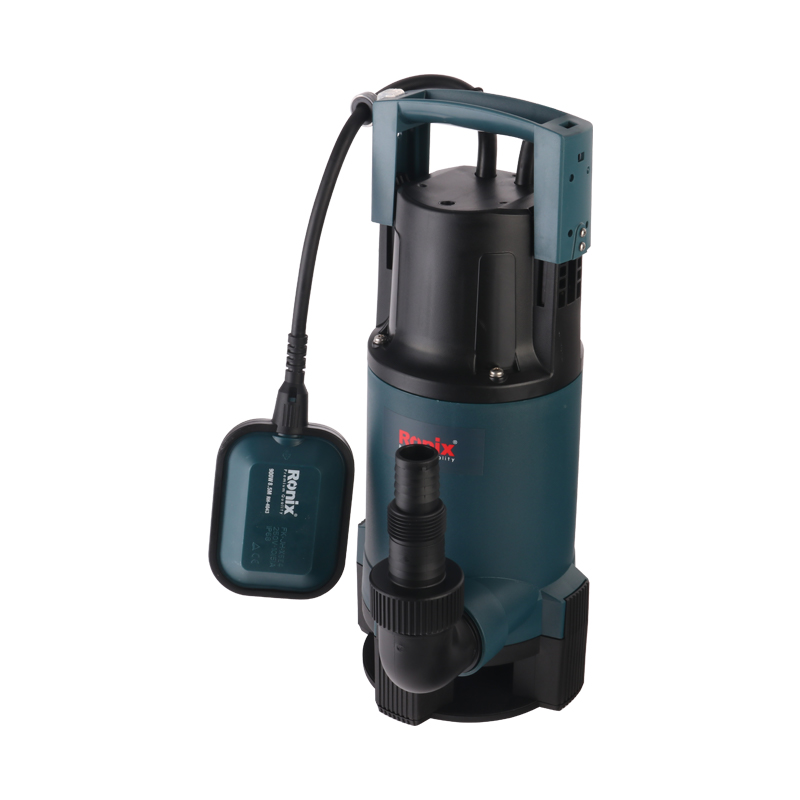

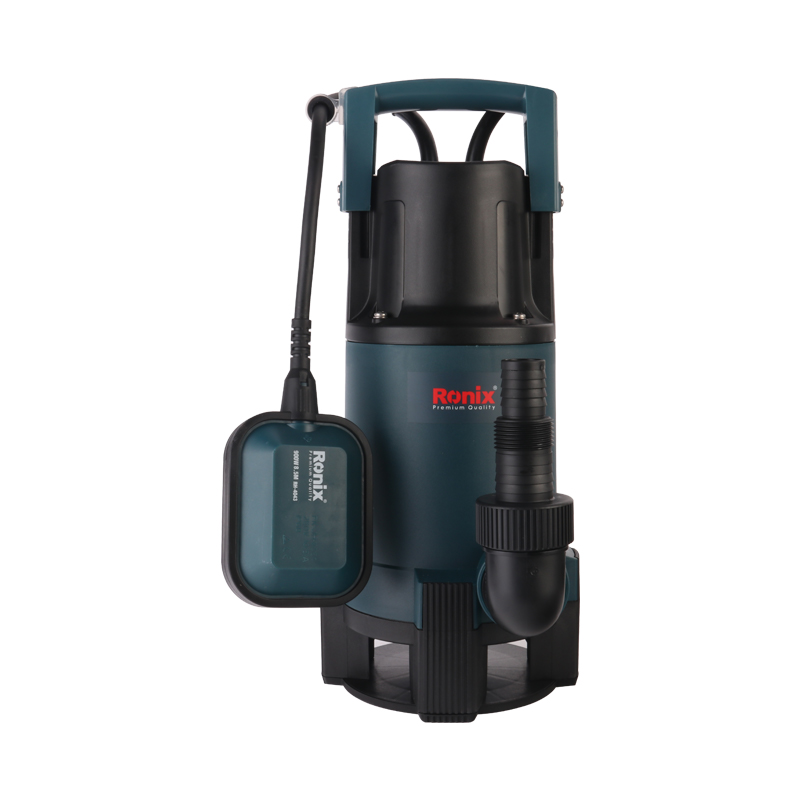

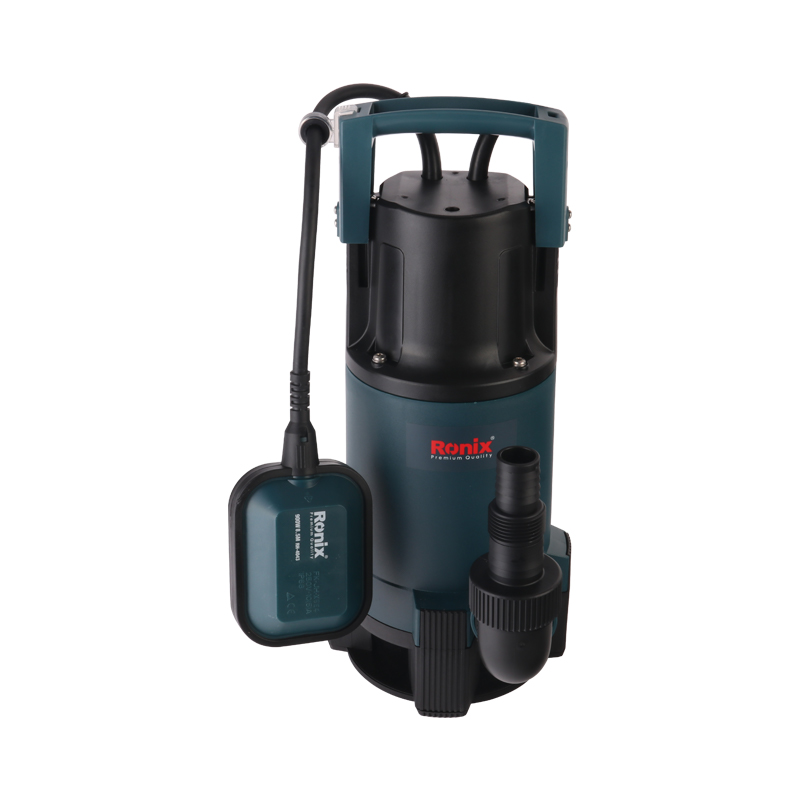

RH-4043 High Quality Submersible Pump
Power: 900W
Voltage: 220-240V
Frequency: 50-60Hz
Min. Flow: 0
Max. flow: 14000L/H
Min. head: 0
Max. head: 8.5M
Outlet port diameter:G1-1/2"
Speed: 2850RPM
Max.liquid temperature:35℃
Max.Ambient temperature:35℃
Working pressure: 0.85Bar
Solid passage diameter: 35mm
Max immersion depth: 7M
Max dry running time: 30S Protection level: IPX8 Insulation class: B class Pump housing material: PP Motor housing material: 409#Stainless steel Mechanical seal material: Ceramic and graphite
Motor protection: 125°C
Coil winding material: copper winding
Impeller material: PA66
Shaft material: 420#Stainless steel
Weight: 6.5Kg
Voltage: 220-240V
Frequency: 50-60Hz
Min. Flow: 0
Max. flow: 14000L/H
Min. head: 0
Max. head: 8.5M
Outlet port diameter:G1-1/2"
Speed: 2850RPM
Max.liquid temperature:35℃
Max.Ambient temperature:35℃
Working pressure: 0.85Bar
Solid passage diameter: 35mm
Max immersion depth: 7M
Max dry running time: 30S Protection level: IPX8 Insulation class: B class Pump housing material: PP Motor housing material: 409#Stainless steel Mechanical seal material: Ceramic and graphite
Motor protection: 125°C
Coil winding material: copper winding
Impeller material: PA66
Shaft material: 420#Stainless steel
Weight: 6.5Kg
-
RH-4043
-
